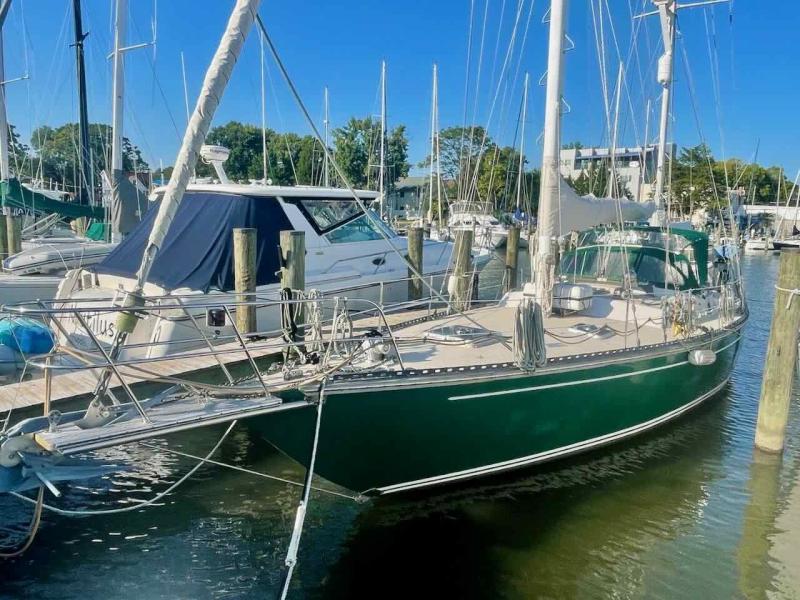

1980 Seamaster Bruce Roberts 45 Ketch

The Seamaster 45 Center Cockpit Ketch “Harlequin” was designed by legendary Bruce Roberts and built in Ft. Lauderdale Florida.  Ketch rigged with Genoa, Stay sail and running back stays, Harlequin is a solid blue water cruiser. Below decks she boasts an exceptionally clean and spacious interior. Her reverse cycle AC with coil heat, enlarged head, large refrigeration and freezer lockers are among the features that make her a clear choice for a liveaboard. She is fully equipped and ready for her next owner, so call for a showing today!

To view media files on Harlequin type or cut and paste these links (case sensitive) into your web browser:

Virtual Tour: www.bit.ly/BR45VIRTUAL

Video Tour: www.bit.ly/BR45VIDEO

Photo Slide Show: www.bit.ly/BR45SLIDE

Underway Video: www.bit.ly/BR45ADAY

COCKPIT

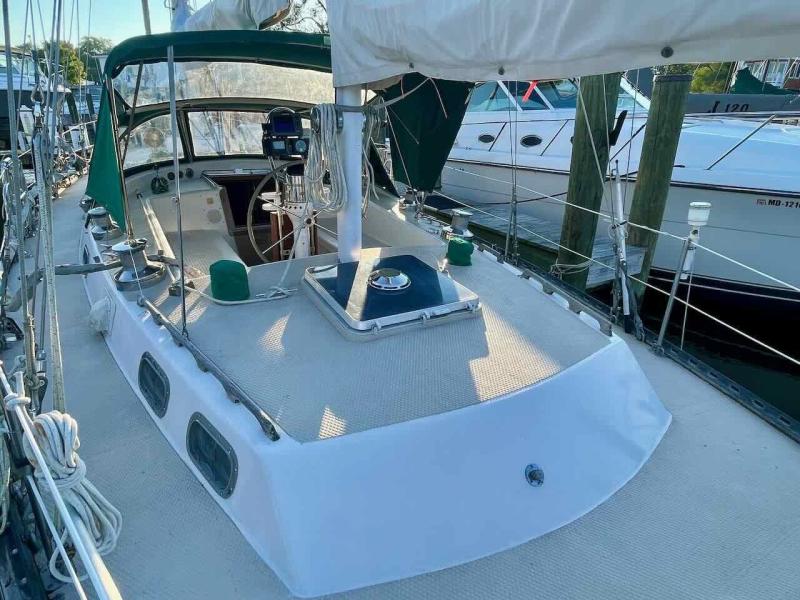

The center cockpit features two cushioned bench seats, port and starboard with a folding teak cockpit table between. Located in the aft section of the cockpit, the helm has a sued wrapped destroyer wheel, magnetic compass, Lowrance chart plotter, Autohelm wind and speed/depth instruments, poly-planar speaker, Tiny Tac tachometer, wheel lock, engine controls and two cup holders. Shore power and cable tv receptacles, along with the engine kill are found port of the helm station.

Moving forward of the helm stereo controls and speakers are found on the forward bulkhead, along with a courtesy light.

Two Barlow 32 2-Speed, self-tailing winches and two Barlow 27 2-Speed, self-tailing winches are mounted on the port and starboard coamings, with two additional winches mounted on the aft cabin top, Barlow 25 and 23 self-tailing. Two Schaefer stoppers are forward cabin top mounted.

Two scuppers are deck mounted forward, with two additional scuppers mounted bench level aft. The cockpit is protected from the sun and sea by a dodger and Bimini with side curtains, with an Eisenglass bridge.

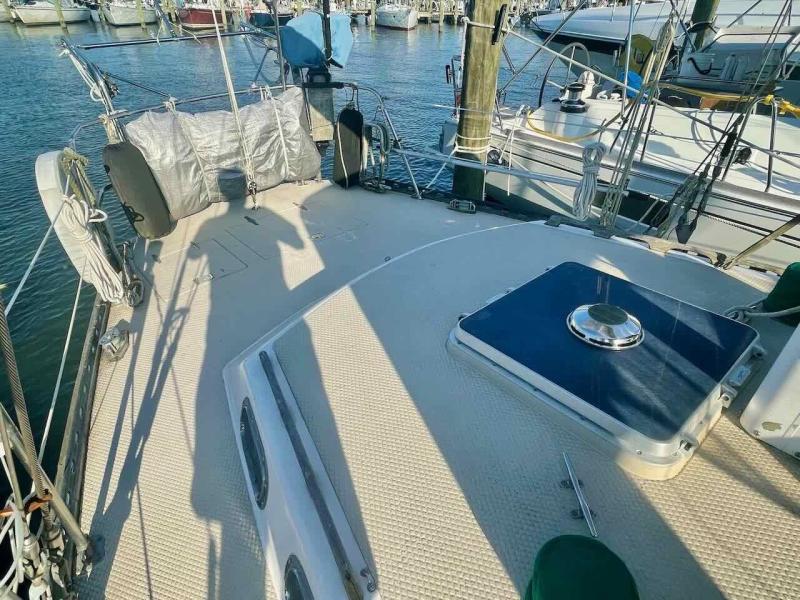

AFT DECK

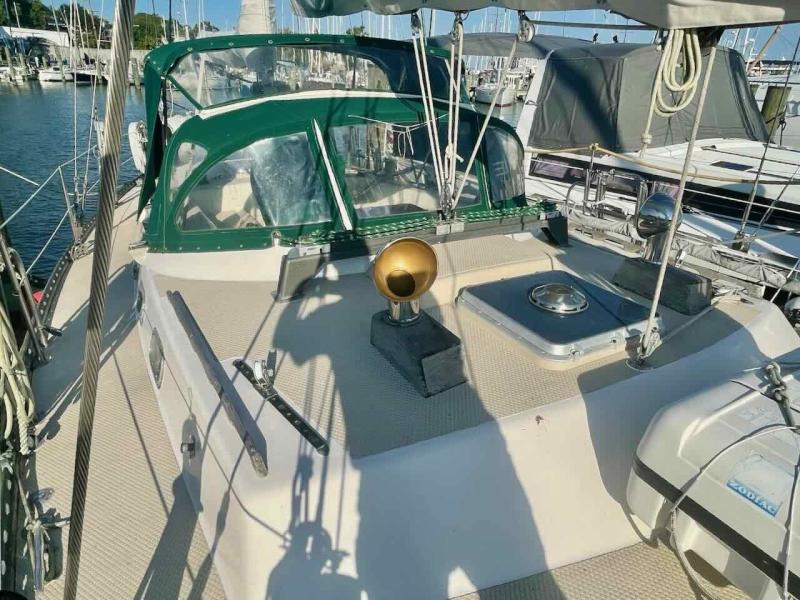

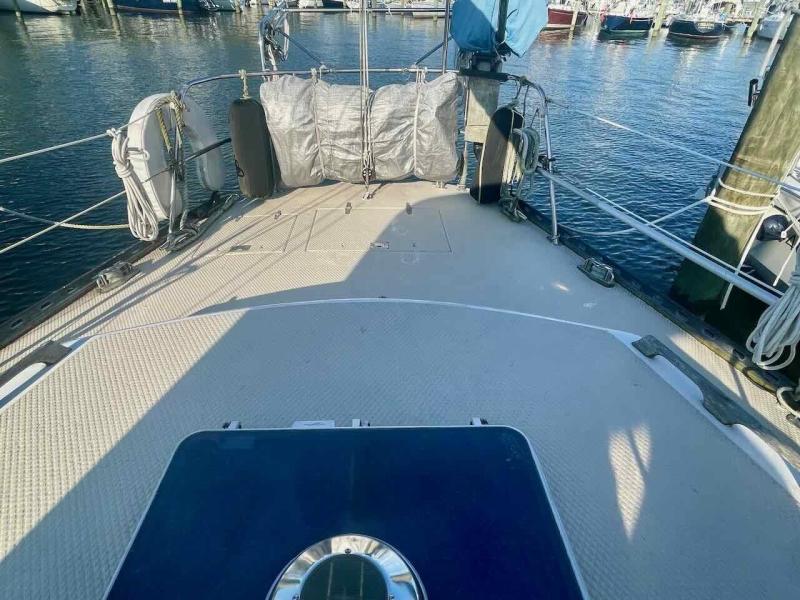

Extending behind the cockpit the spacious aft deck is large enough to accommodate 3 folding chairs and features a tender davit, outboard engine mount, two horseshoe pdf mounts, transom locker and propane lockers.

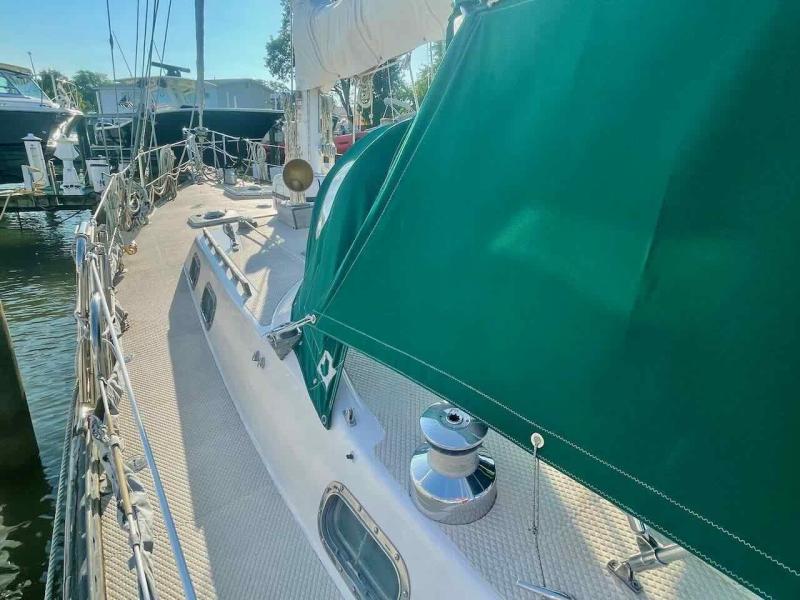

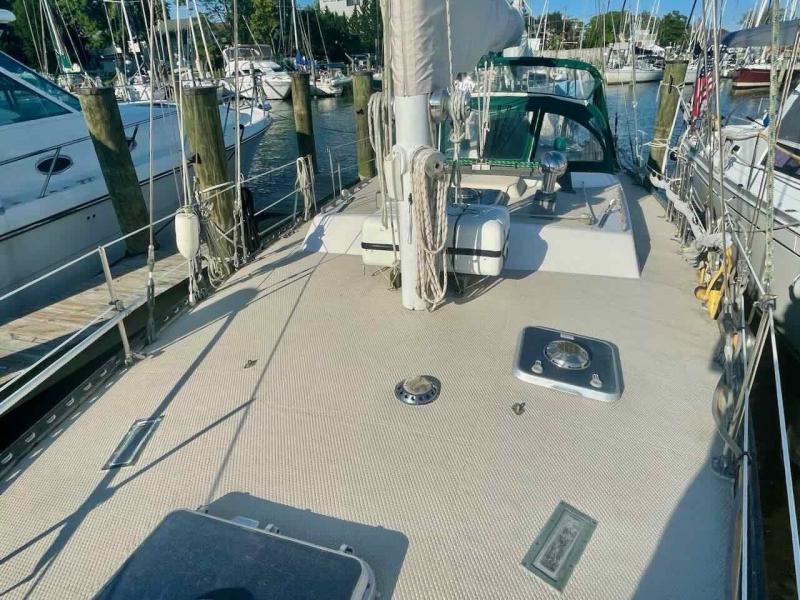

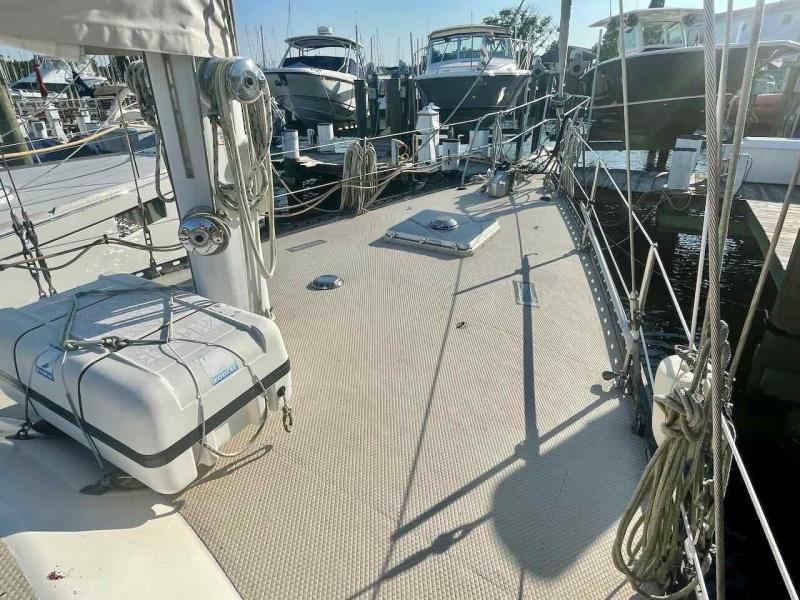

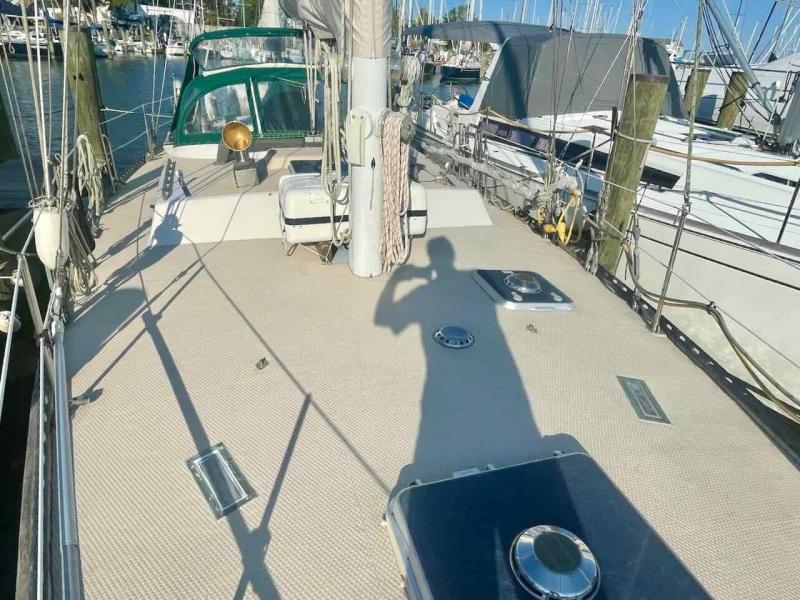

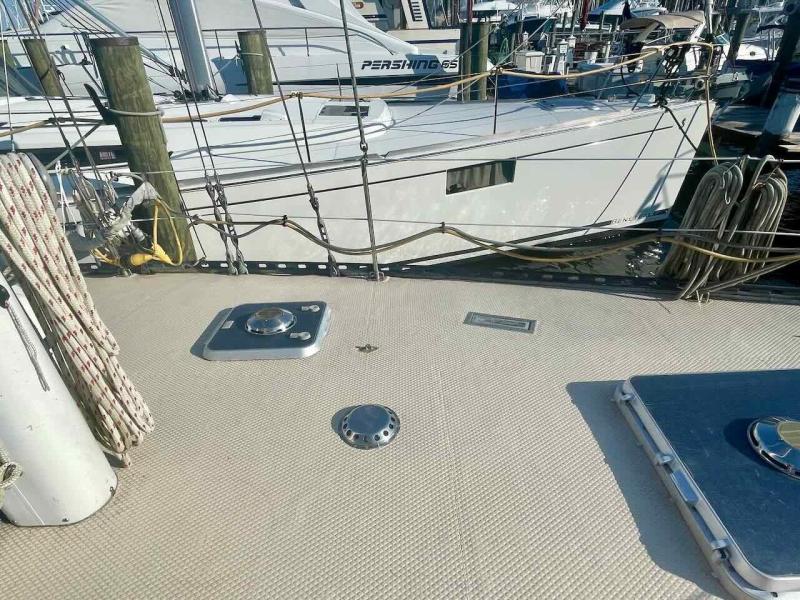

TOPSIDES

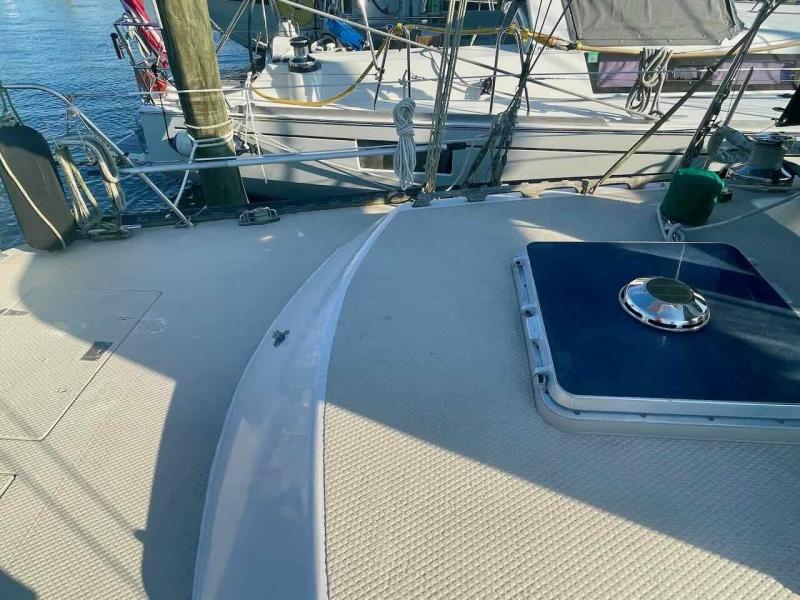

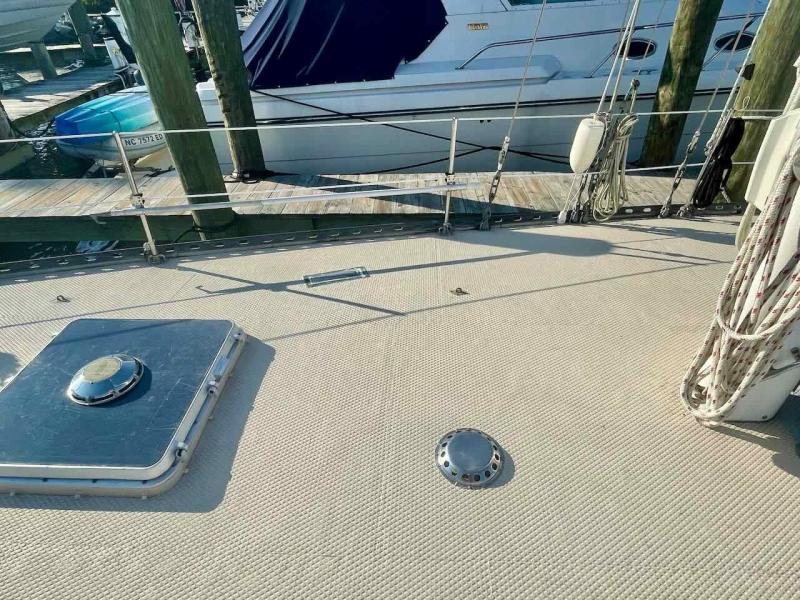

The decks feature Lewmar TreadMaster non-skid deck covering painted with Interlux Interdeck. The deck is protected by stainless steel bow and stern rails connected by dual lifelines running the length of the deck port and starboard; gates are found just forward of the cockpit, port and starboard and at the stern for swim ladder access.

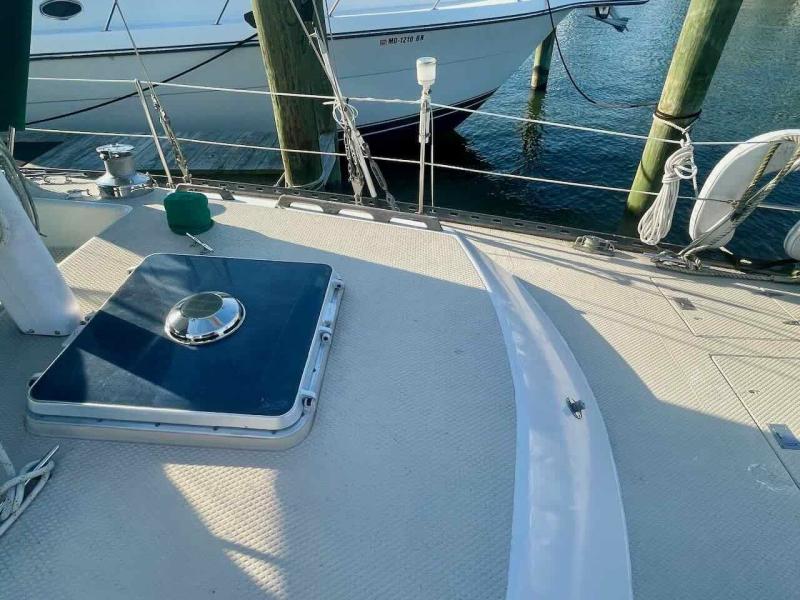

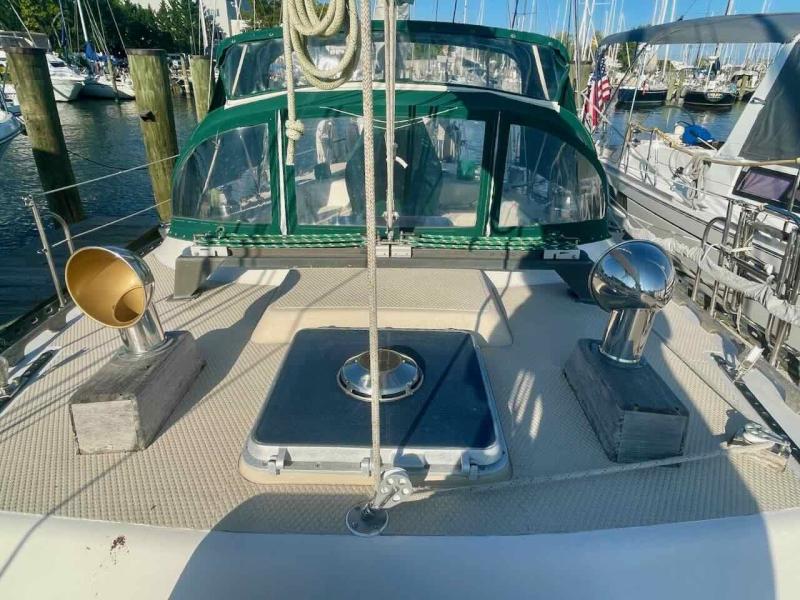

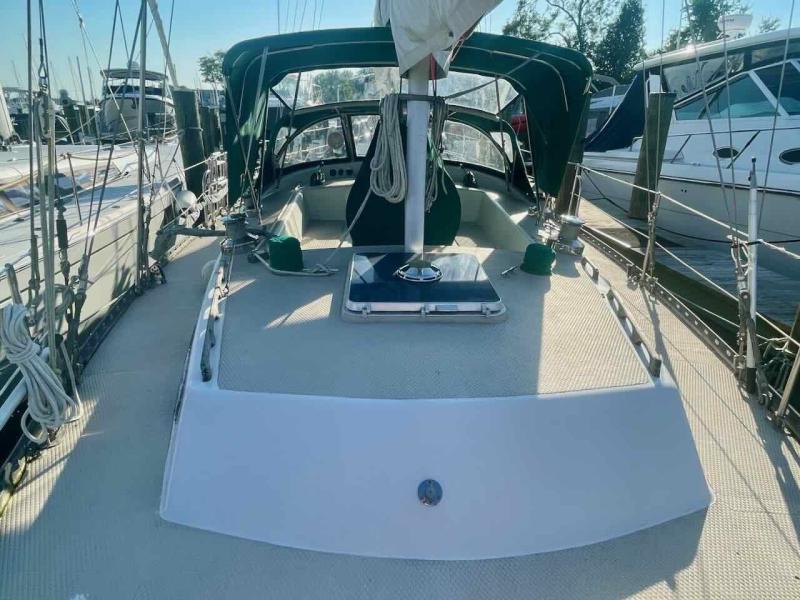

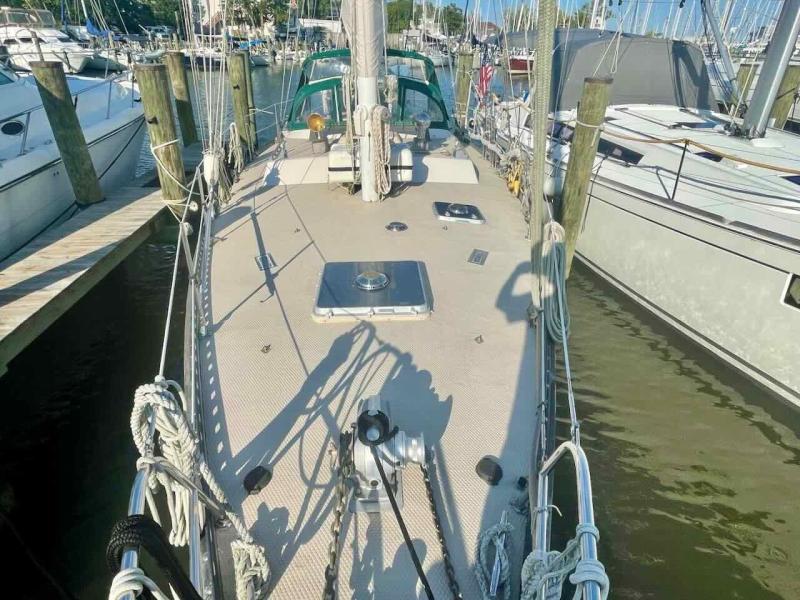

Two hatches, two deck prisms and four pad eyes are found on the fore deck, with single hatches located on the forward and aft cabin tops. Six opening portlights are mounted in forward cabin top, with four mounted in the aft cabin top and one in the cockpit well. Teak hand holds run along the forward and aft cabin tops.

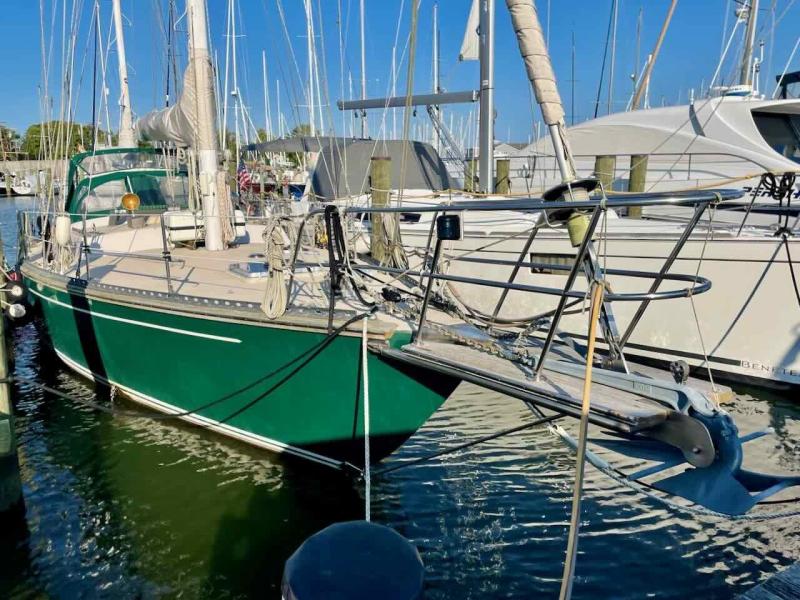

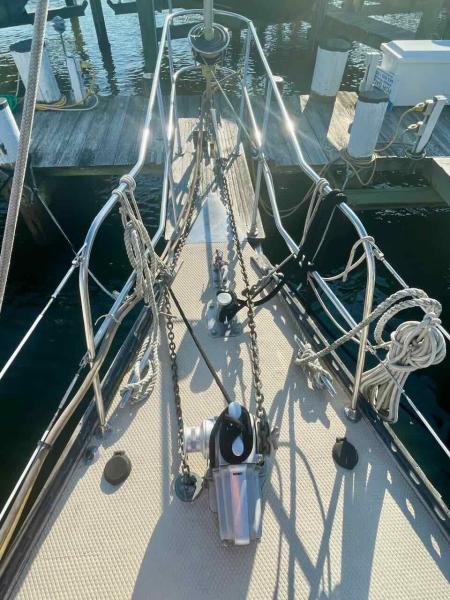

The bowsprit features dual anchor roller mounts, serviced by an electric windless.

Head sail turning blocks are deck mounted at the cockpit with stay sail tracks running along the port and starboard cabin top. Spinnaker turning blocks are deck mounted aft. A bollard and two cleats are found at the bow with additional cleats midship and at the stern.

The ketch rig features aluminum spars, stainless wire cable standing rigging, dual spreader main and single spreader mizzen masts, a headsail roller fueler, stay sail stay, running back stays and lazy jacks. One self-tailing Barlow 25 and three self-tailing Barlow 25 winches are mounted on the main mast. One self-tailing Barlow 19 and one Barlow 16 winch are mounted on the mizzen mast.

MAIN CABIN

Entering the main cabin from the cockpit via a center mounted companionway the large cabin features a seating area forward, galley to starboard with a locker area opposite to port. The main cabin, as well as the rest of the interior, features white surfaces with teak appointed joinery and a teak parquet sole. The seating area features a table with two settees facing fore and aft on the port side, an additional settee facing the table opposite, with a pilot’s berth behind. Storage lockers are found along the port side above the table. Additional storage lockers are found under the settees and aft of the seating area on the port side. Two stereo speakers are mounted on the port side fore and aft of the seating area. Plenty of light is provided by four portlights, a screened overhead hatch and over head lights. Ventilation and light is provided by the screened hatch, the screened cockpit companionway the opening portlights, two dorade vents, three fans and reverse cycle air conditioning. Overhead lights and a reading lamp provide additional lighting.

GALLEY

The L-shaped galley is located aft of the seating area on the starboard side, and features a three burner stove/oven, double stainless steel sink and a large top access cold locker. Storage is provided by over and under counter lockers, drawers and shelving. There is a 120 vac outlet, one overhead and two over counter lights and one red night light. A microwave oven and large top loading freezer locker are found opposite the galley in the nave station alcove.

NAV STATION ALCOVE:

The navigation station is found on the port side, aft of the main cabin. The top loading cold locker is located on the port side, with a microwave oven and shelving above. The ships electrical panel, generator control panel and engine compartment access panels are found on the starboard side. The nav table is located aft with instrumentation above. Lighting is provided by an overhead light, over table light, map light and a red night light. There is a fan and two opening portlights for ventilation.

WORK ROOM:

The work room is located aft of the galley and features a work bench with removable vice along the starboard side. Storage lockers and shelving are found below the bench with storage trays, magnetic strip and mirror above. The bench is competed by a 120 vac outlet, an over bench light and a red night light. Ventilation is provided by an opening portlight and a fan. Engine compartment access panels are located opposite the bench on the port side.

AFT CABIN

The full beam aft cabin is accessed via the work room and features a double berth on the port side and a single berth to port. Shelving runs along the port and starboard sides with lockers underneath. Additional storage is provided by lockers at the forward bulkhead and under the berths. A two level counter is found aft between the two berths with a mirror above and utility lockers below. Two stereo speakers are mounted fore and aft on the starboard side. Lighting is provided by three lamps and a red night light mounted on the forward bulkhead. Additional light and ventilation is provided by four opening portlights an overhead hatch, two fans and reverse cycle air conditioning.

FORWARD CABIN

Access to the forward cabin is found through a companionway forward of the main cabin. The cabin features a v-berth with lockers beneath. Additional storage is provided by lockers and shelving running the length of the cabin on the port and starboard sides. Two reading lamps, two overhead deck prisims and a red night light provide lighting. Additional lighting is provided by a screened overhead hatch which, along with reverse cycle AC and two fans, also offers ventilation. Access to the chain locker is found on the forward bulkhead.

HEAD

The head is accessed from the companionway on the port side. There are two large full length lockers opposite on the starboard side. The head features a countertop with sink, separate shower and a composting toilet. Entering the head the counter top sink is forward, with the toilet to the right and the shower stall to the left. There are storage lockers below the counter with a mirror, towel racks and 120 vac outlet above. Lighting is provided by an overhead light and a red night light and a screened hatch, which along with a fan and a louvered door pannels, also offers ventilation.

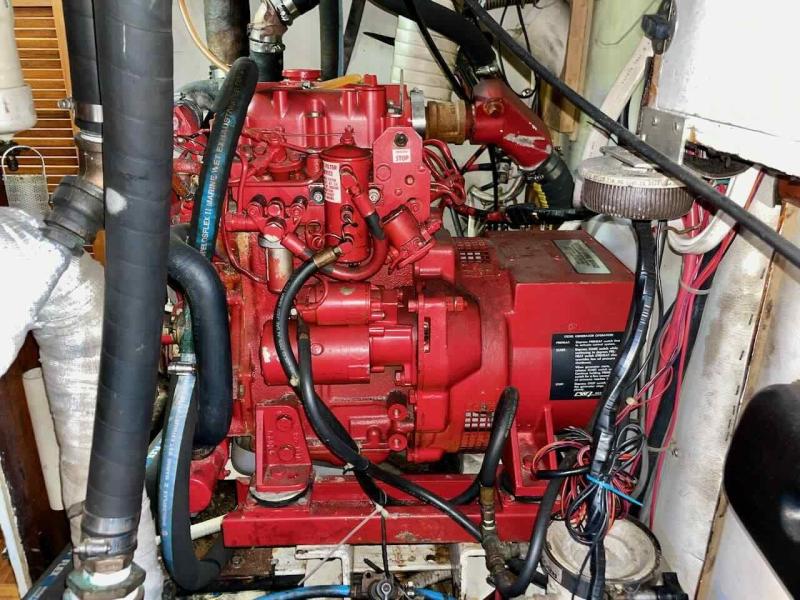

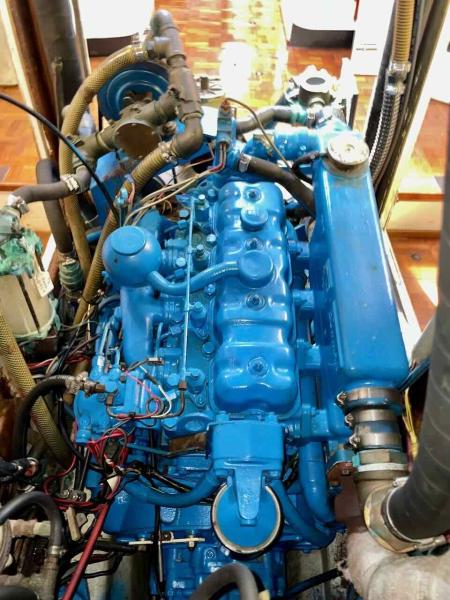

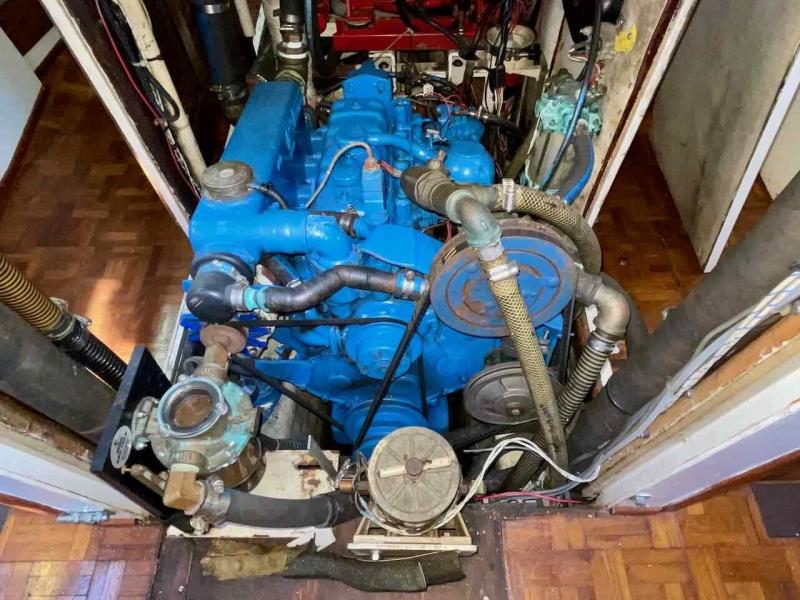

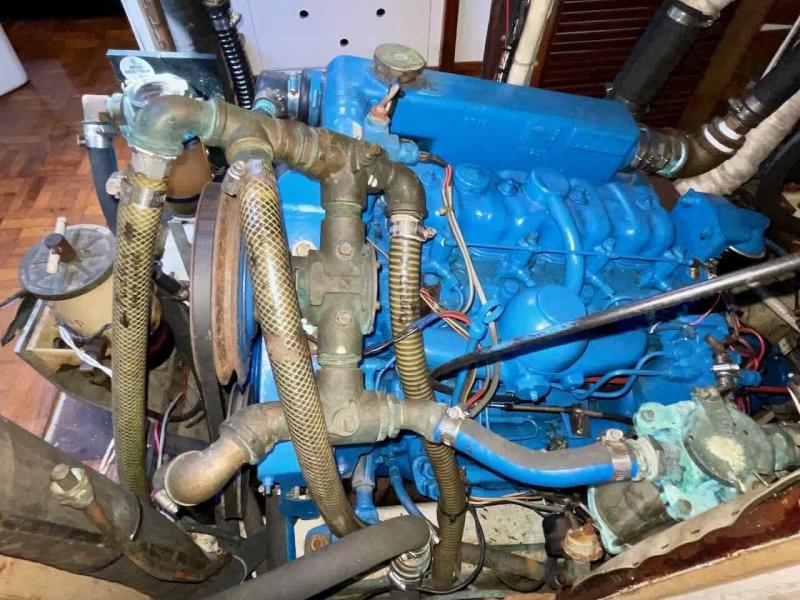

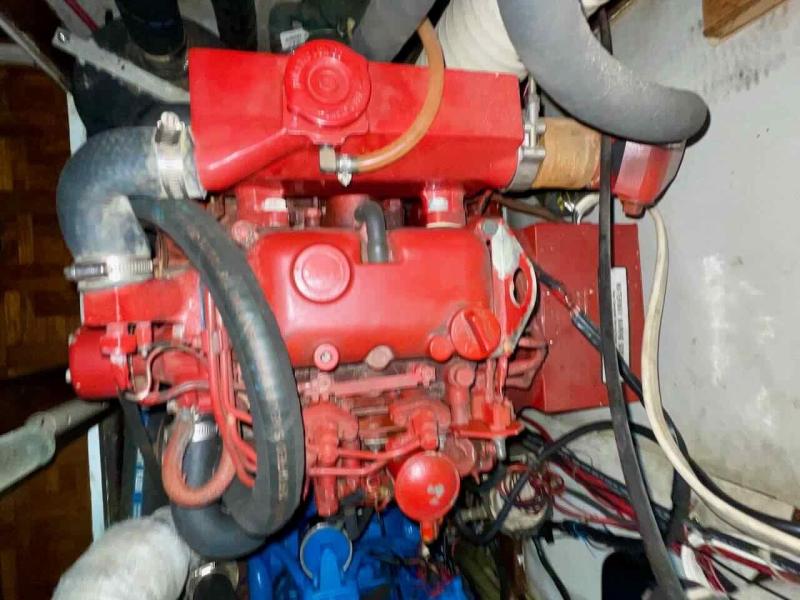

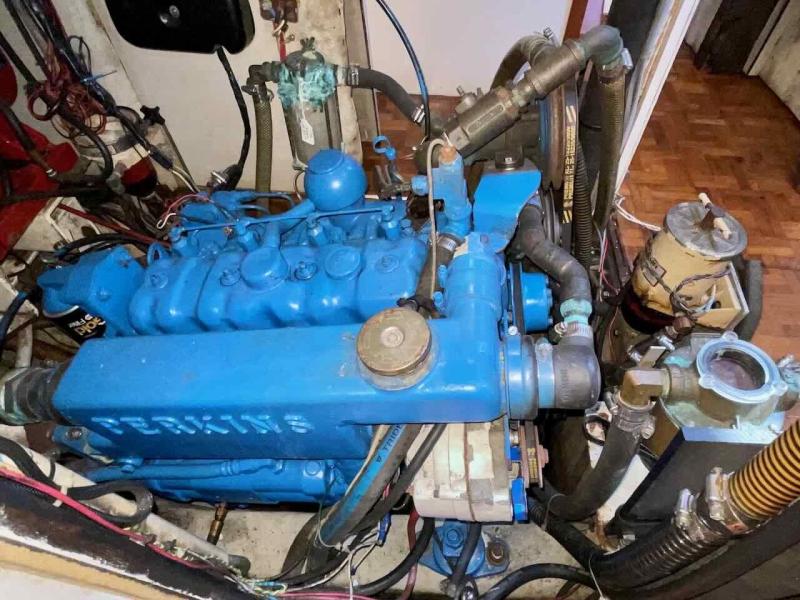

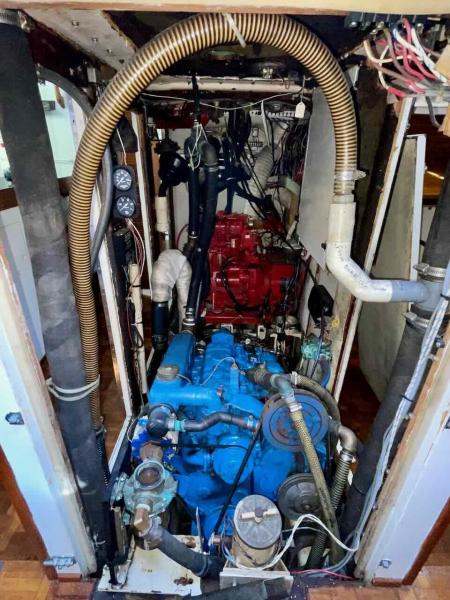

ENGINE COMPARTMENT

The engine compartment is between the nav alcove and the work room. Removable panels in these areas and behind the cockpit companionway stairs provide 360 degree access to the engine and 270 degree access to the generator.

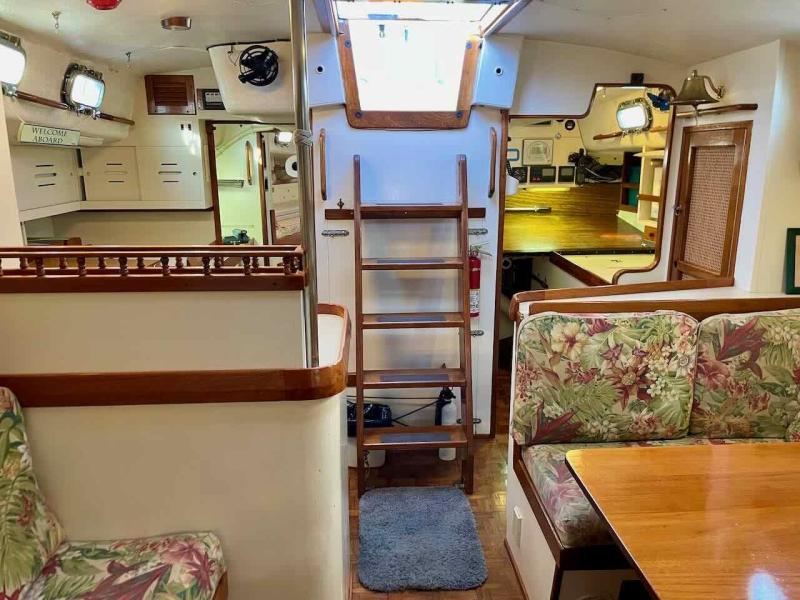

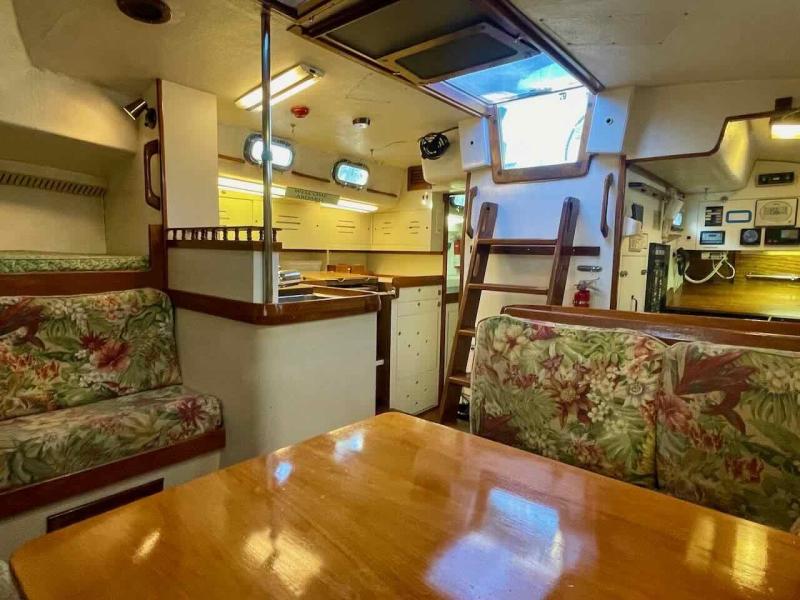

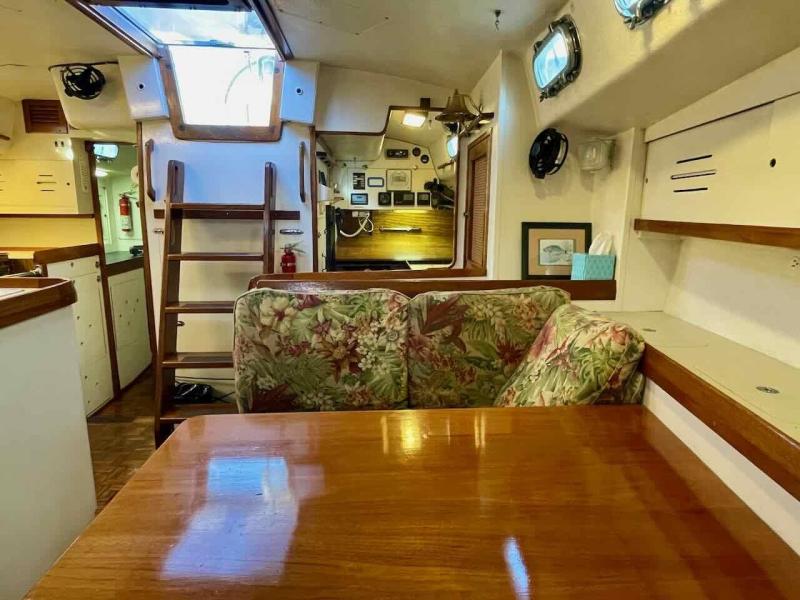

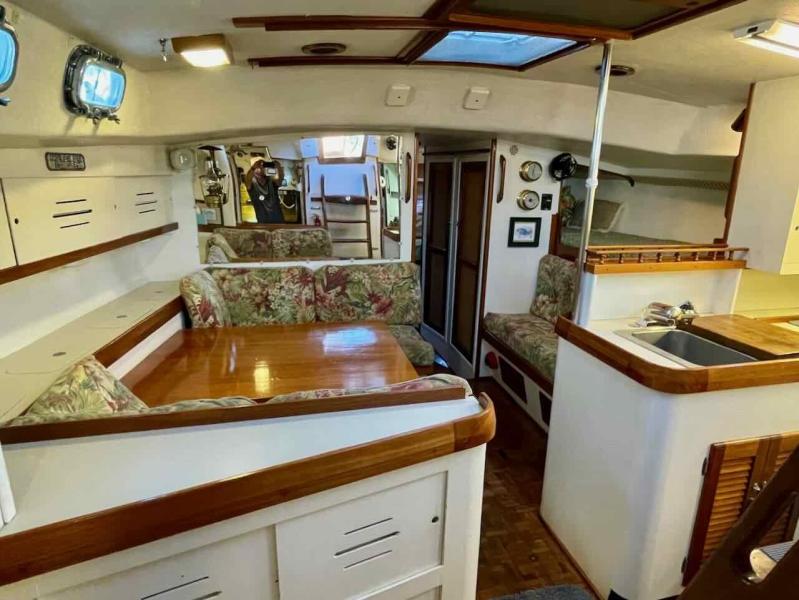

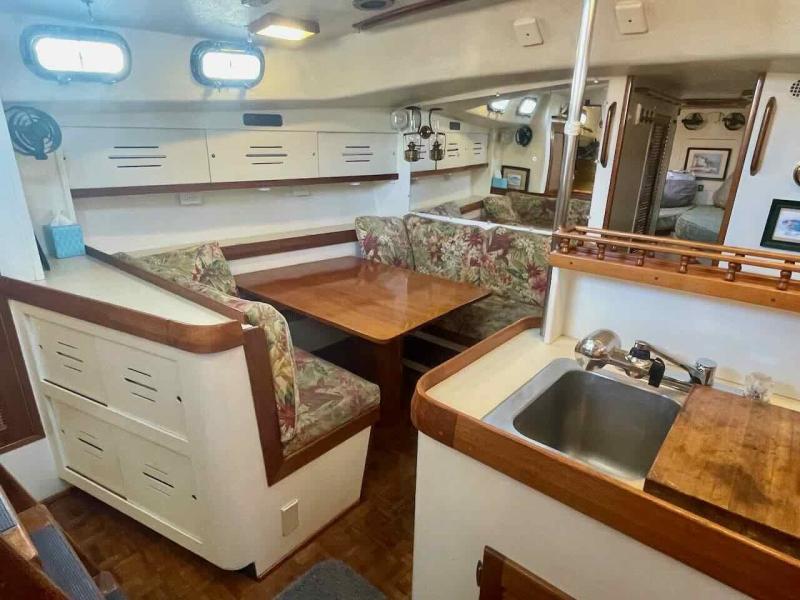

MAIN CABIN

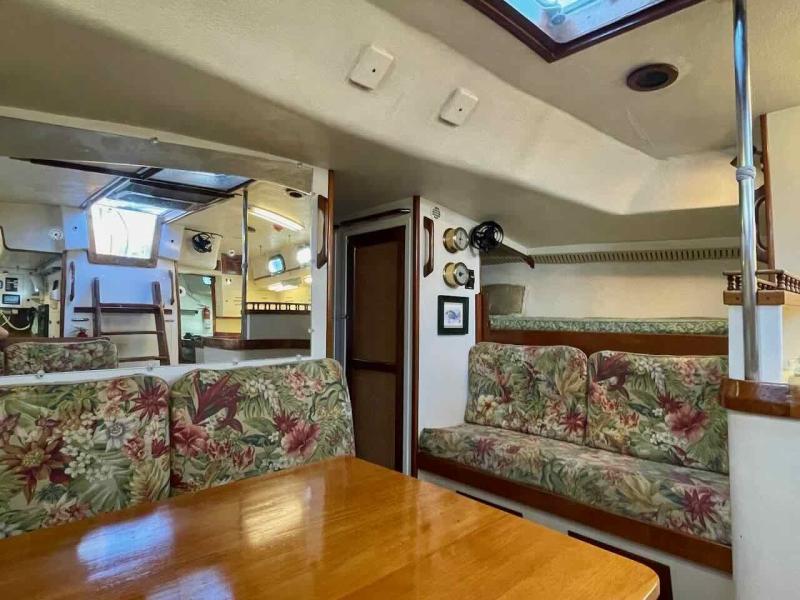

The main cabin is entered from the cockpit, six steps down via a center companionway and features three areas; seating, galley and storage that feature:

- White surfaces with teak appointments

- Teak parquet sole

- Cockpit companionway with screen

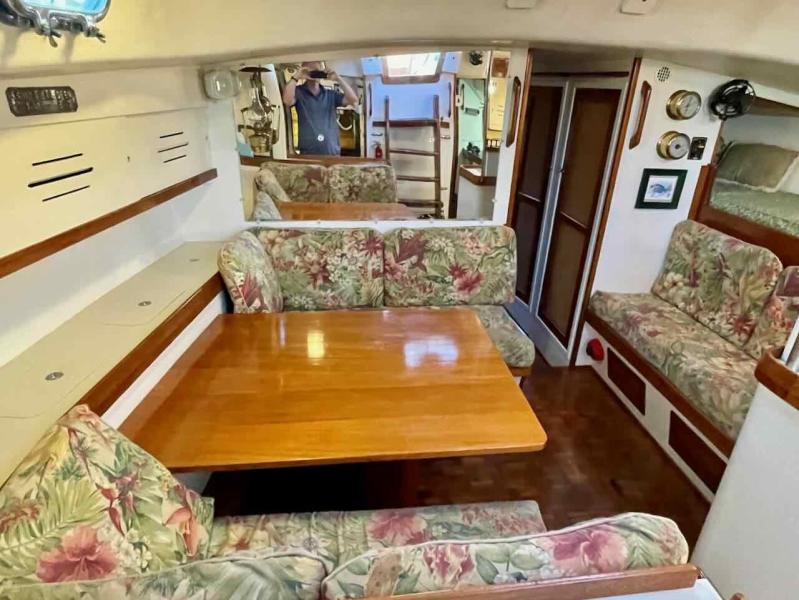

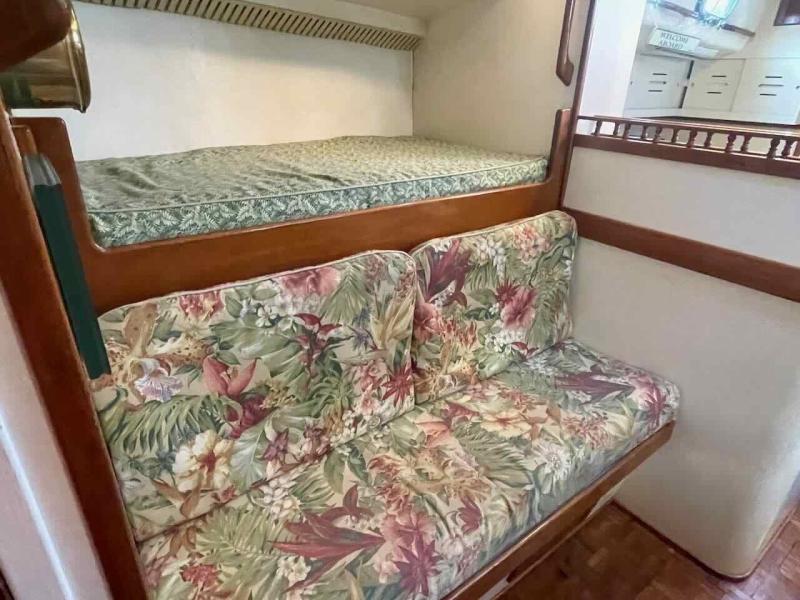

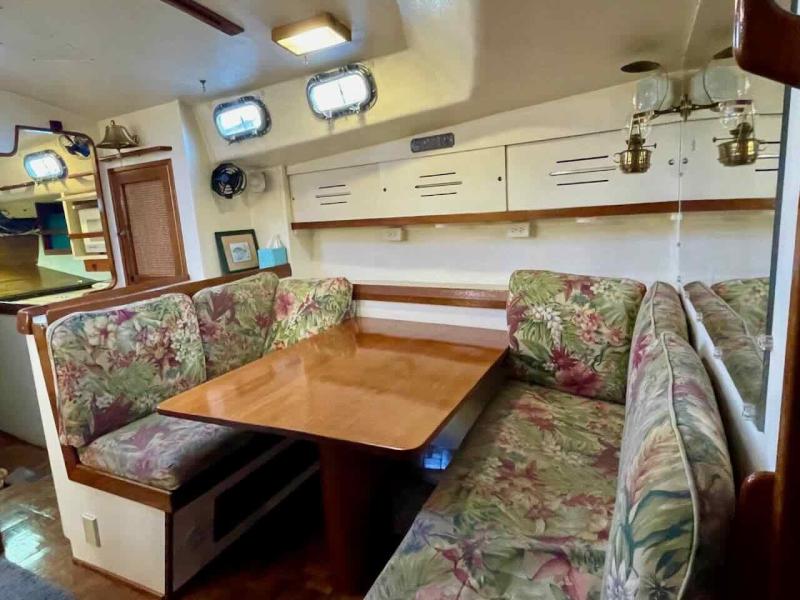

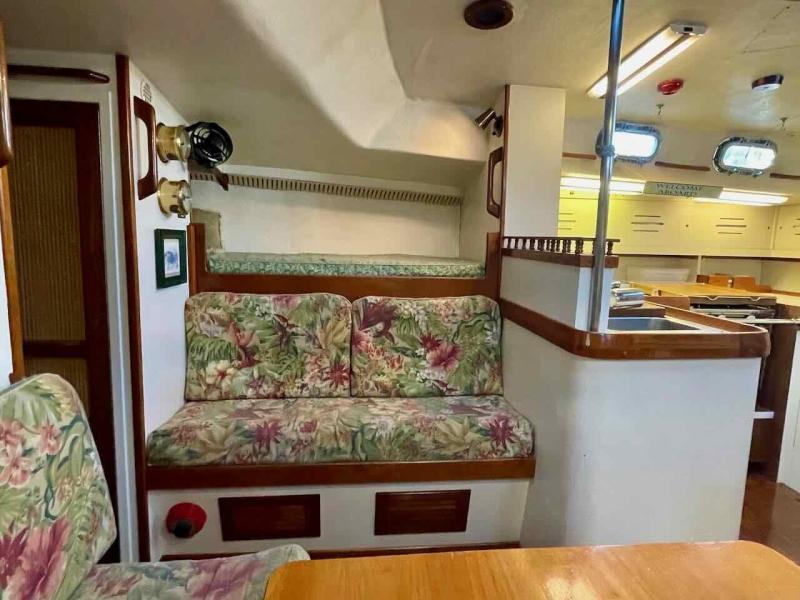

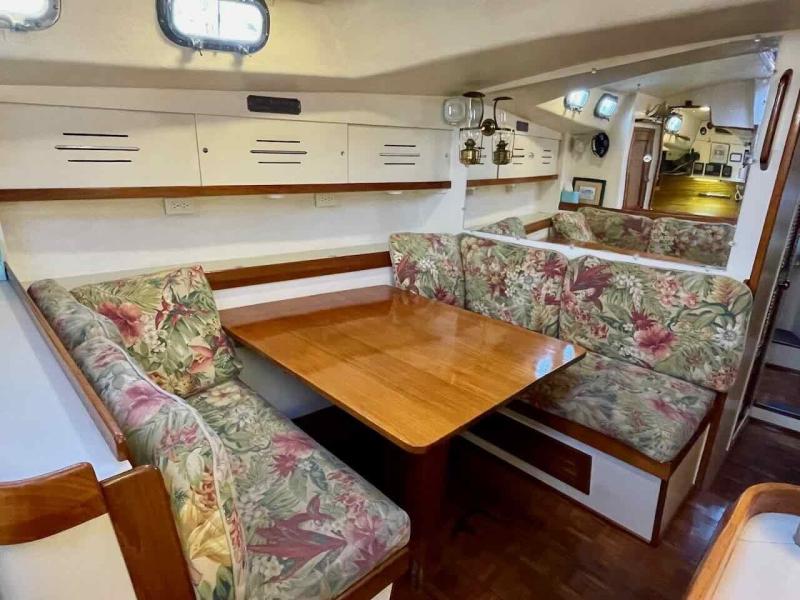

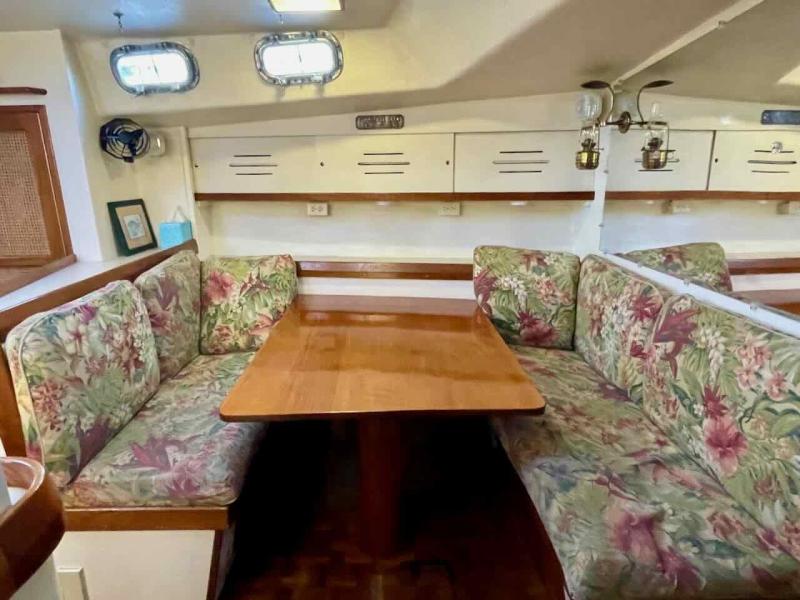

Seating Area:

- Table with 2 settees facing for and aft

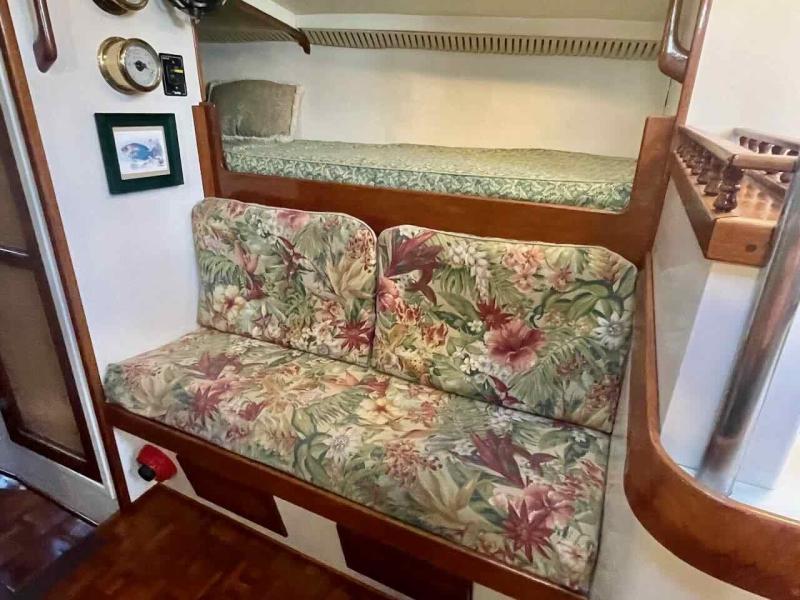

- Starboard side settee, facing table

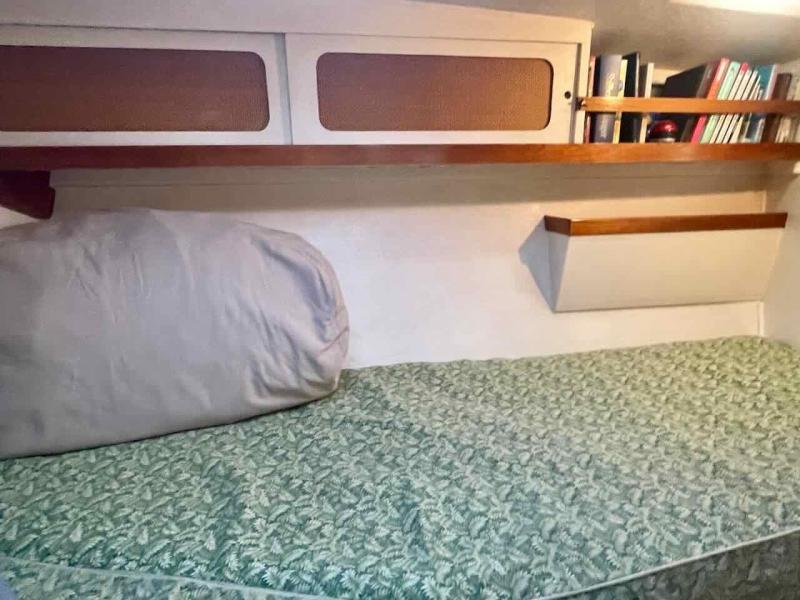

- Pilot’s berth behind starboard settee

- 3 Front access lockers along port side

- Shelf with 4 top loading storage lockers

- Storage lockers under forward settee

- Utility lockers under aft settee and starboard settee

- Storage lockers under pilot’s berth

- 2 West Marine stereo speakers

- West Marine ship’s clock

- West Marine ships barometer

- Oil lamp; forward bulkhead mounted

- Overhead light; 12 vdc

- Reading lamp; pilot berth

- 2 120 vac outlets

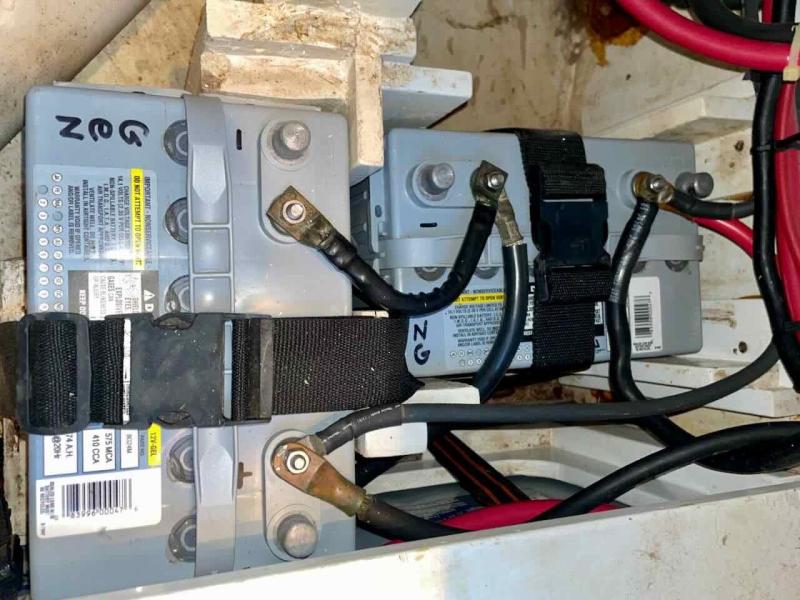

- Battery bank switch

- Windless breaker

- A/C Register

- Overhead hatch with screen

- 2 Opening portlights

- 2 Dorade vents

- 2 Hella turbo fans; 12 vdc

- Mirror; forward bulkhead

- 3 Hand holds

- Countertop w/fiddles

- Headroom 76 inches

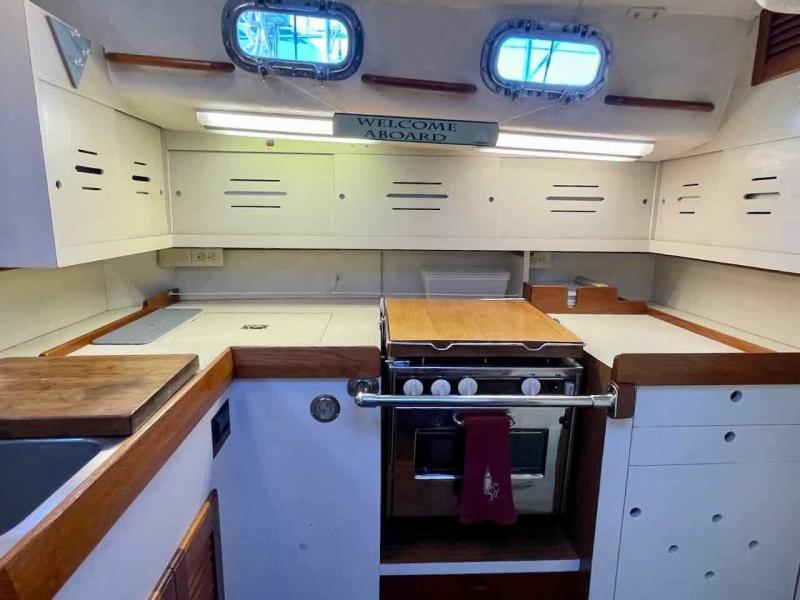

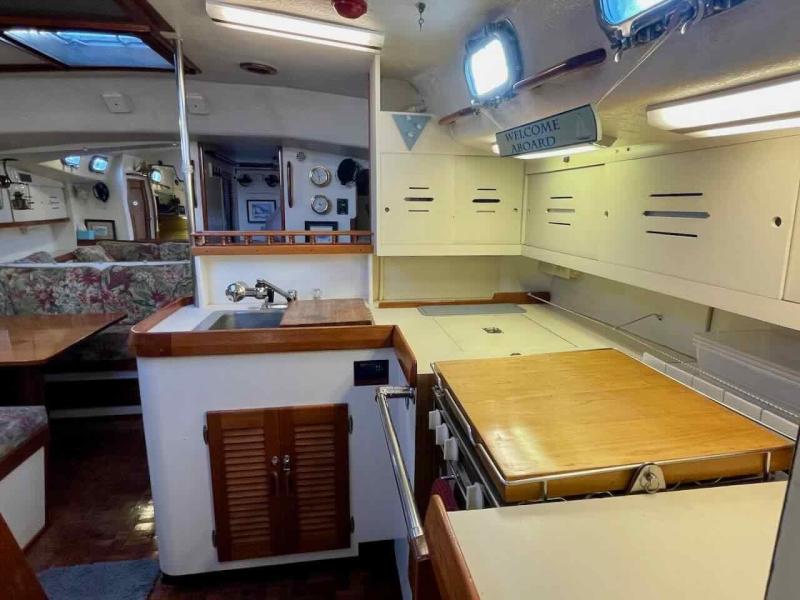

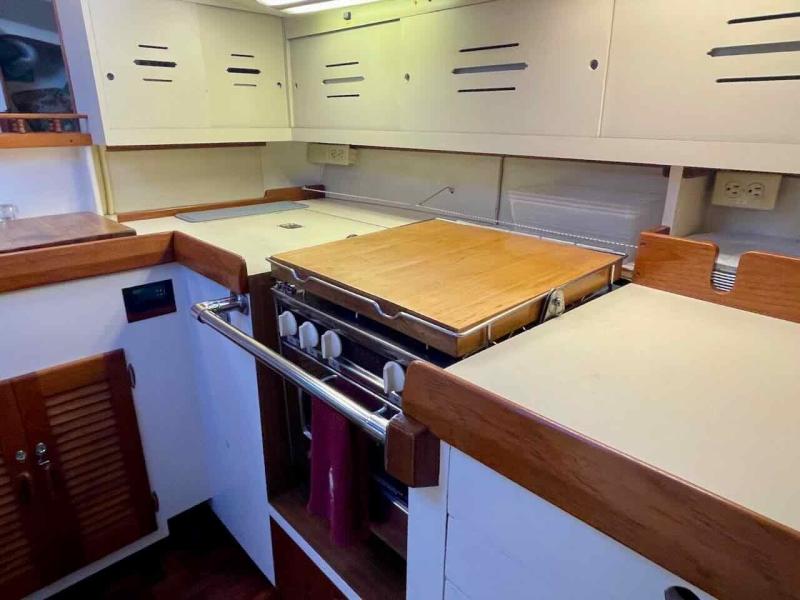

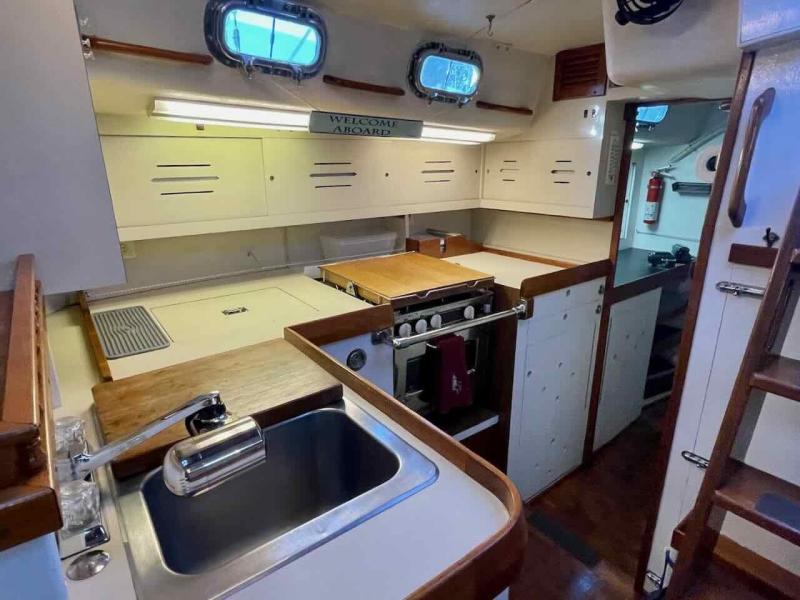

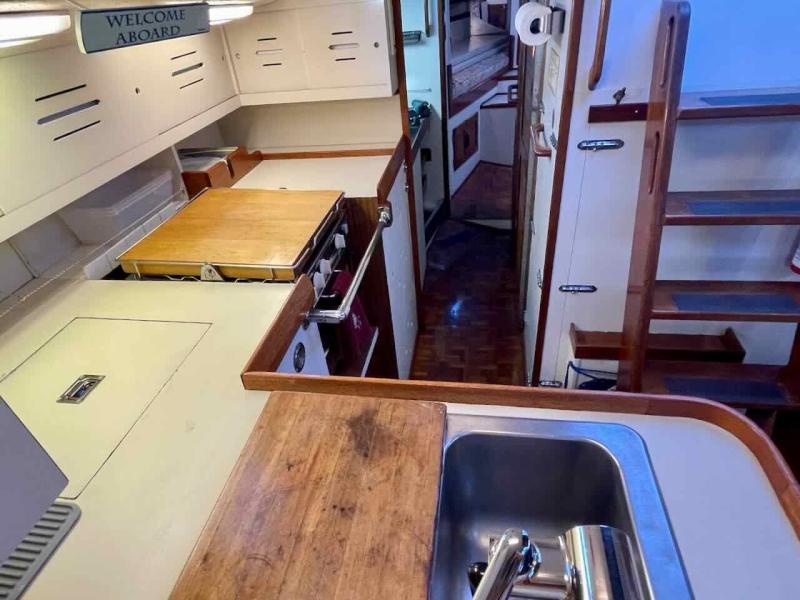

Galley:

The galley is on the aft starboard side of the main cabin, and features L-layout comprised of a starboard side fiddled countertops with stove and a second adjoining fiddled counter with sink extending midships. A raised shelf above the counter separates the galley from the seating area. The galley features:

Starboard Side Counter:

- 6 over counter lockers

- 2 under counter drawers

- Under counter locker

- Counter top access cold locker with SeaFrost cooling plate system can be set to freeze or refrigerate

- SeaFrost control panel

- Cooper refrigerator temperature gauge

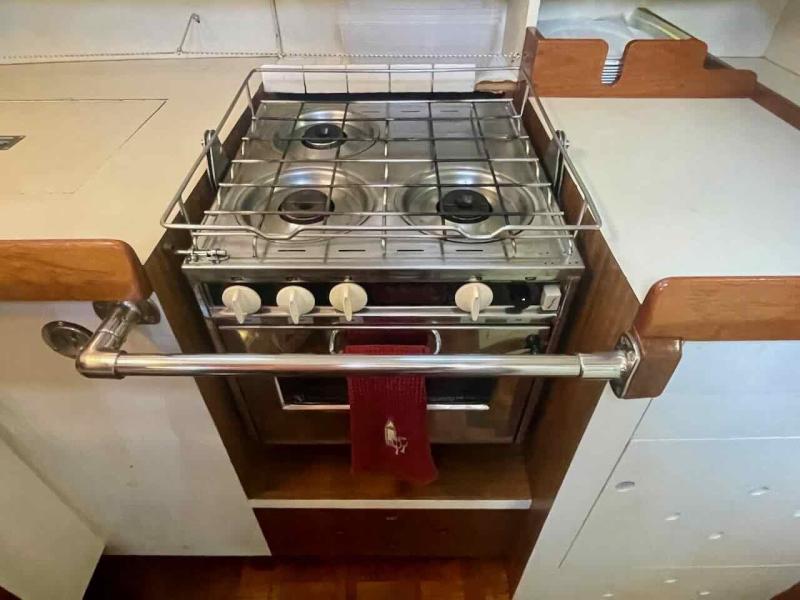

- Mariner 3 burner propane stove/oven; gimbaled

- Under stove storage locker

- Xintex Fireboy Propane/CNG Fume Detector and Control System panel; model S-2A

- Paper towel holder

- 2 Opening portlights

- 2 Over counter lights; 12 vdc

- 120 vac outlet

- Plate storage rack

- 5 Hand holds

Forward Counter:

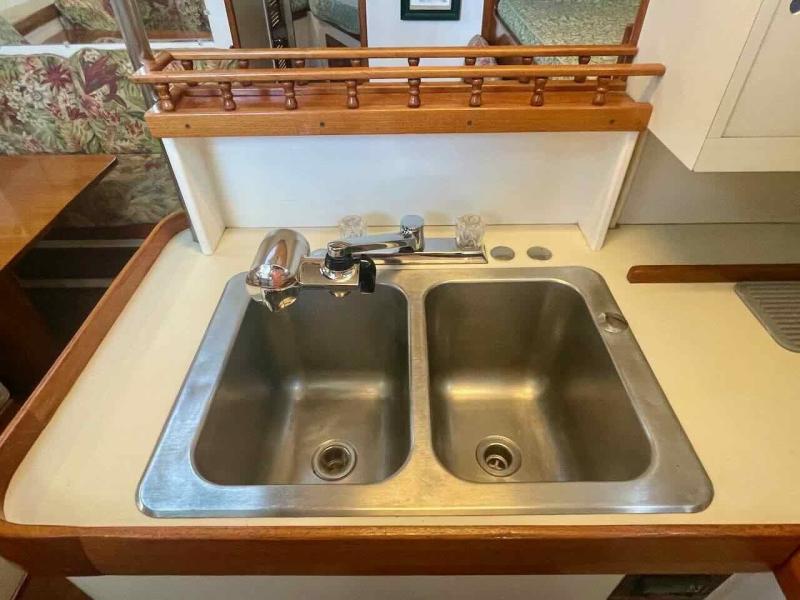

- Double stainless steel sink with hot & cold running water and PUR water filter

- Under sink locker

- Raised over counter shelf

- Overhead light; 12 vdc

- Overhead red night light; 12 vdc

- Headroom 74 inches

Storage Area:

The storage area is on the aft port side of the main cabin and features:

- 2 Storage lockers under fiddled shelf separating the this space from the seating area

- Full length hanging locker with shelf

- Handhold

- Ship’s bell

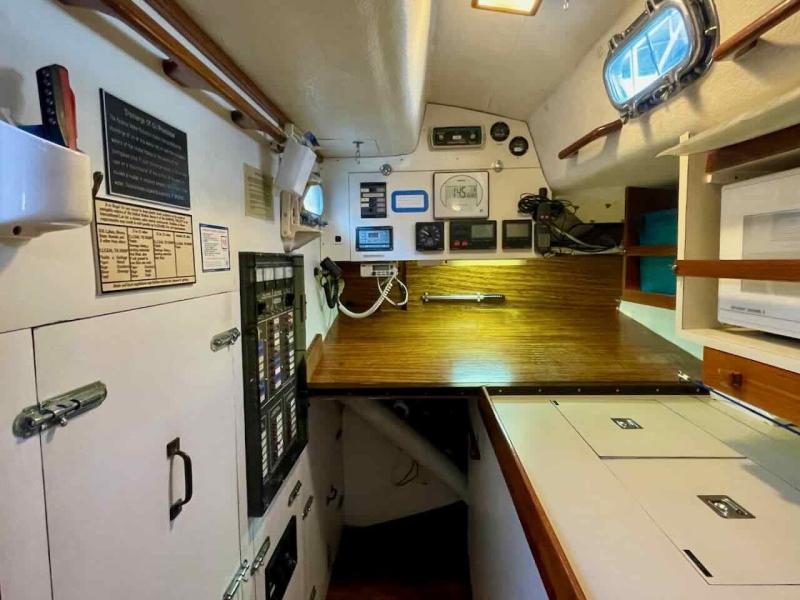

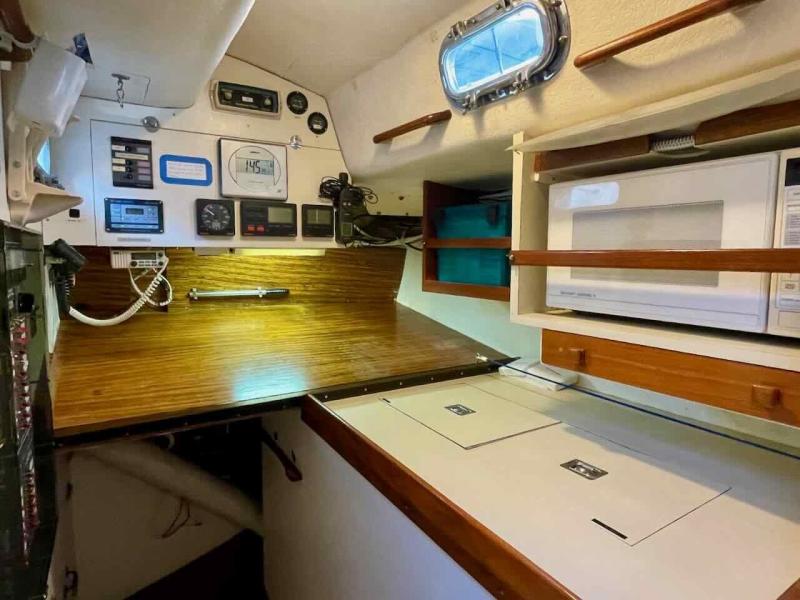

NAV STATION ALCOVE

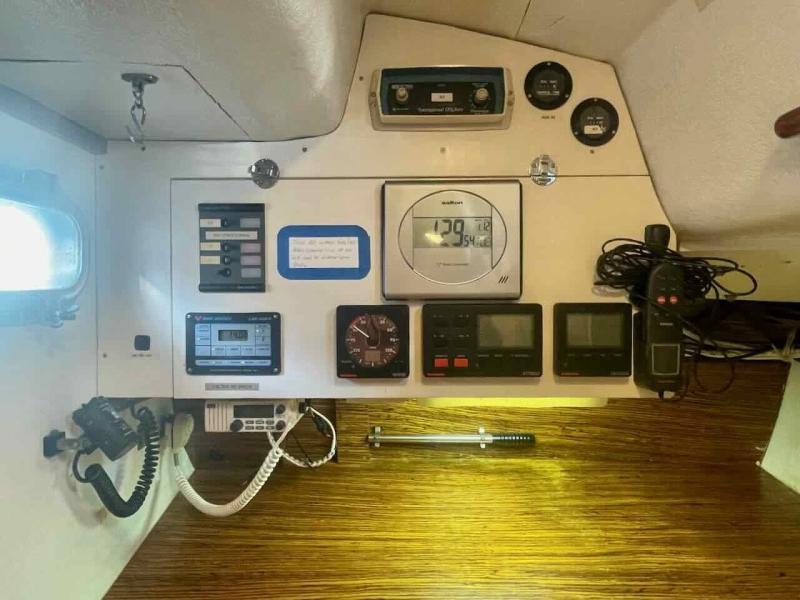

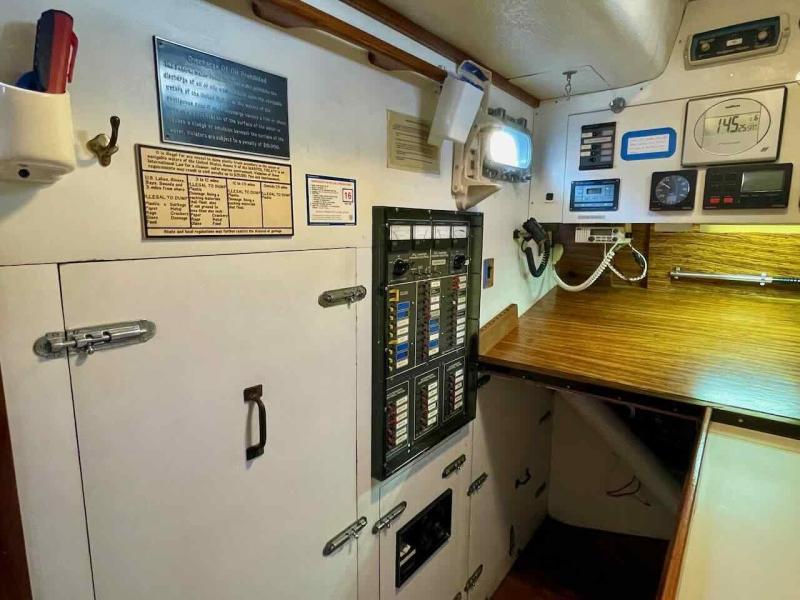

The nav station alcove is found on the port side of the vessel, aft of the storage area and features:

- Navigation table

- Chartlight – red/white, flood/spot adjustable chart table light; model S1400/12; 12 vdc

- Instrumentation:

  * Autohelm TriData Depth/Speed instrument

  * Autohelm auto-pilot control panel; model ST700

  * Autohelm auto-pilot hand held remote control unit; model ST600R

  * Autohelm wind instrument; inoperable

  * Heart Interface battery charger/inverter control panel; model Link 2000-R

  * iCom VHF marine transceiver; model IC-M56

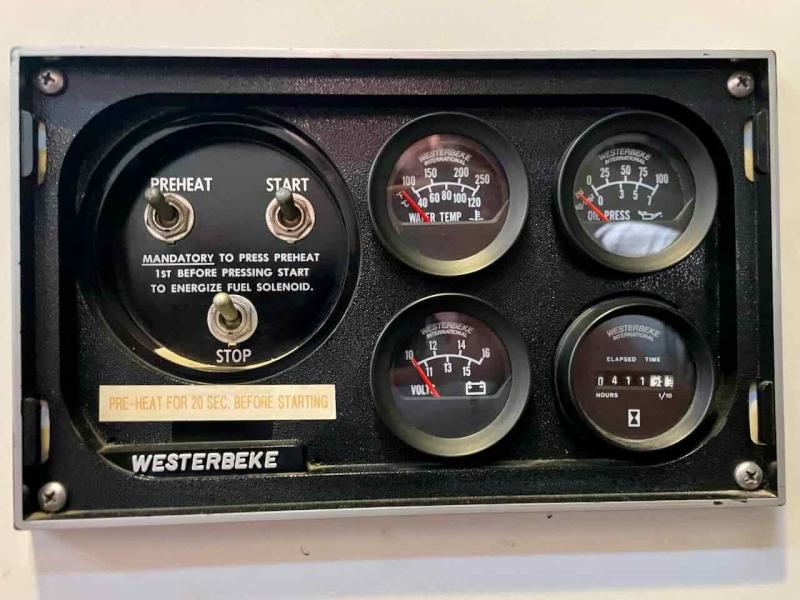

  * Engine hour meters

  * Salton digital clock

- Air Condition unit breaker panel

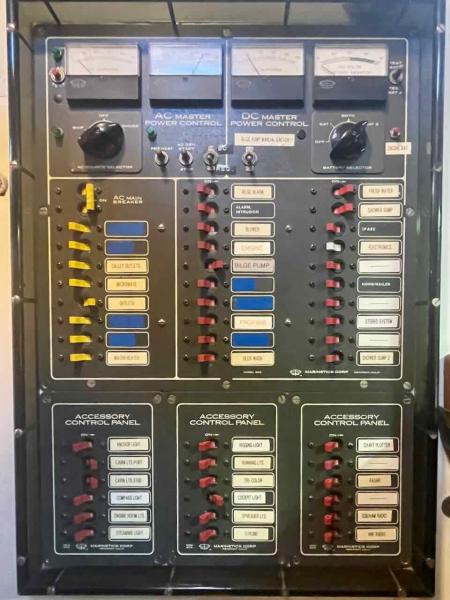

- Ships electrical breaker panel; 12 vdc, 120 vdc

- Generator control panel

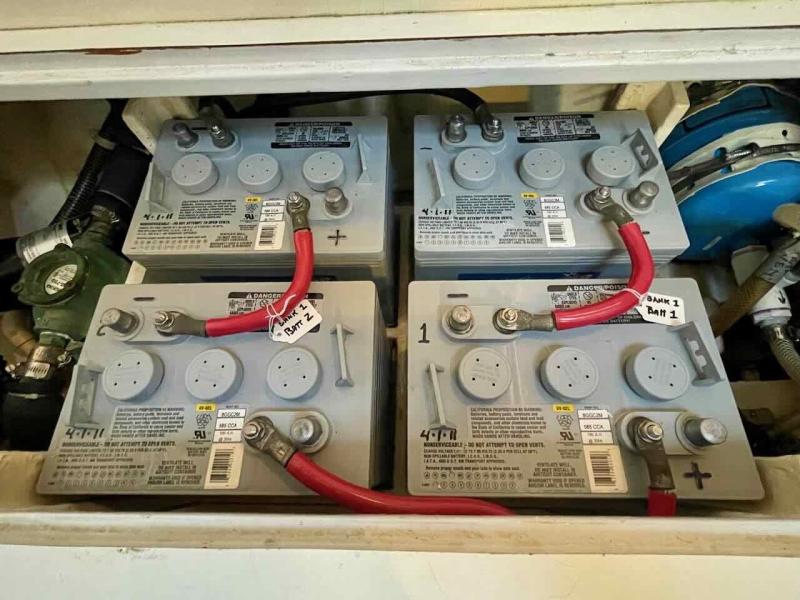

- 3 Battery bank switches

- Top loading cold locker with SeaFrost cooling plate system can be set to freeze or refrigerate

- SeaFrost control panel

- Cooper refrigerator temperature gauge

- Top mounted Sharp Carousel II microwave oven; 800w; model R4A92

- Drawer underneath oven

- Chart storage above oven

- Book shelf

- 2 Handholds

- 120 vac outlet

- Over table light; 12 vdc

- Overhead light; 12 vdc

- Red night light

- 2 Opening portlights

- Napa Fan; 12 vdc

- Headroom 78 inches and 69 inches

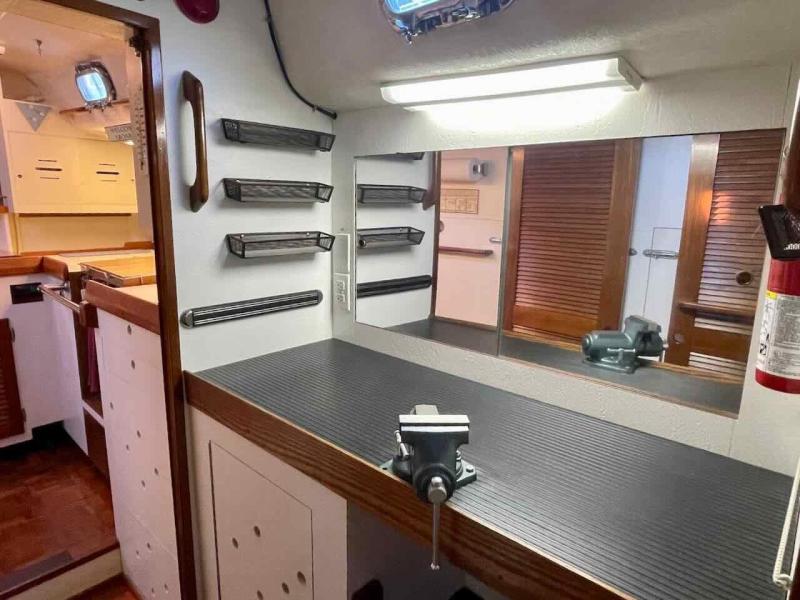

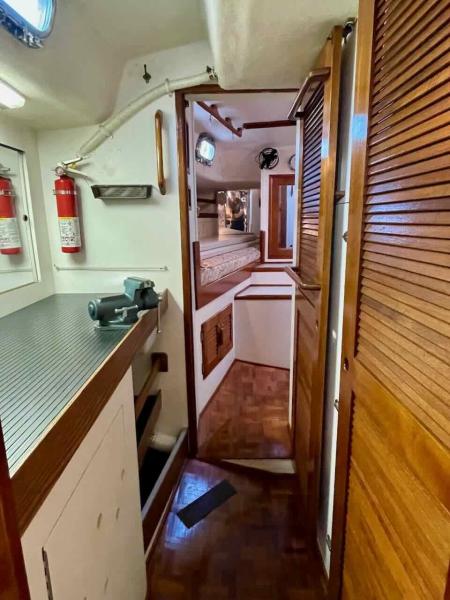

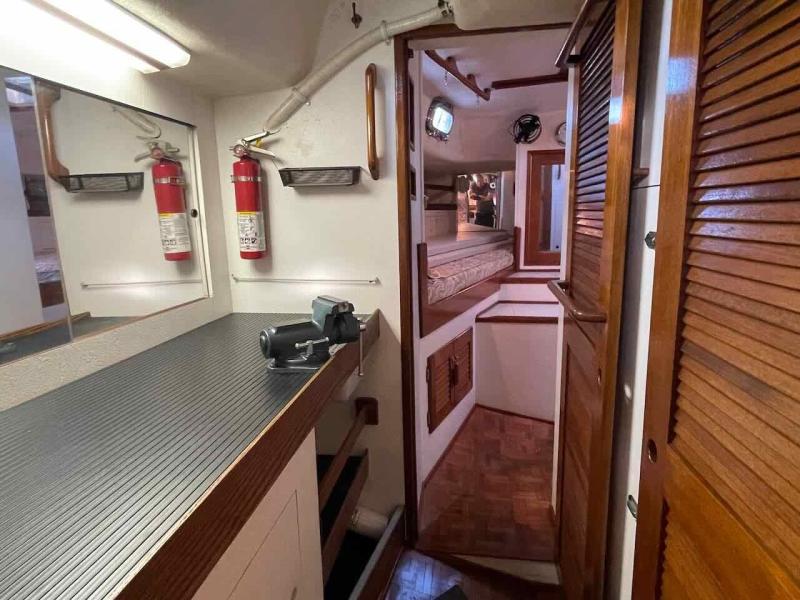

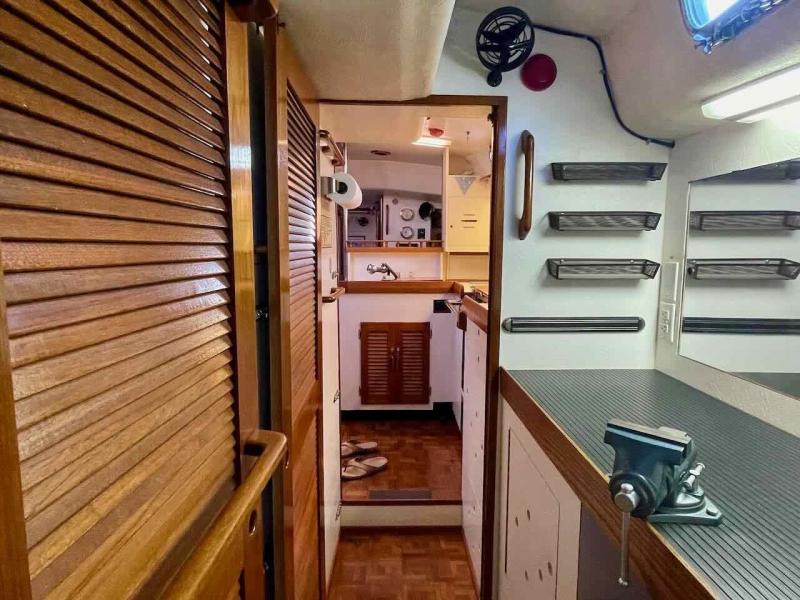

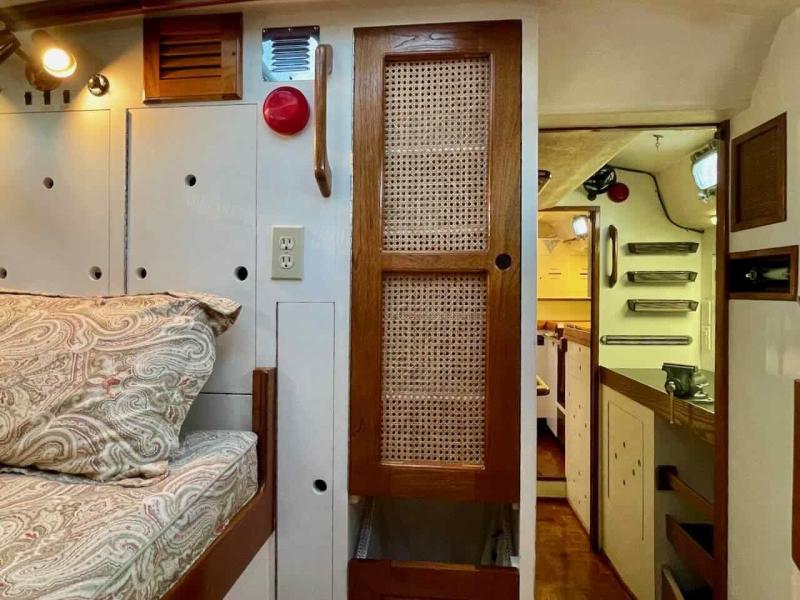

WORK ROOM

- Fiddled work bench

- Removable vice

- Under bench storage locker

- Under bench shelving

- 4 Over bench storage baskets

- Over shelf magnetic strip

- Over bench mirror

- Over bench light; 12 vdc

- Red night light; 12 vac

- 120 vac outlet

- Opening portlight

- Fan; 12 vdc

- 2 Hand holds

- Engine compartment access panels

- Headroom76 inches and 68 inches

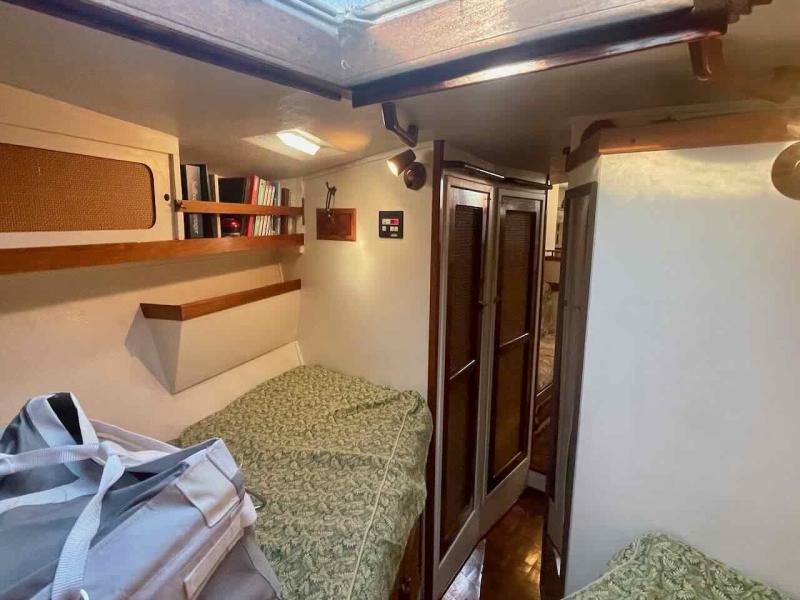

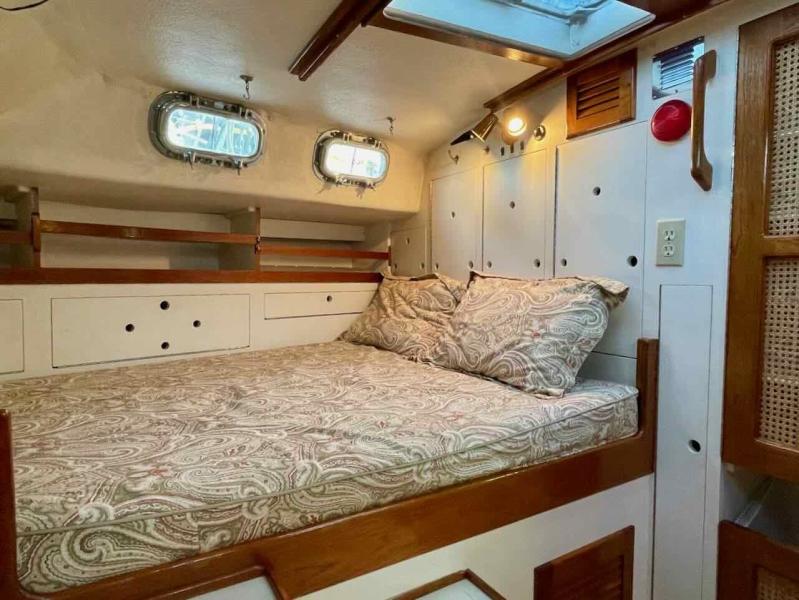

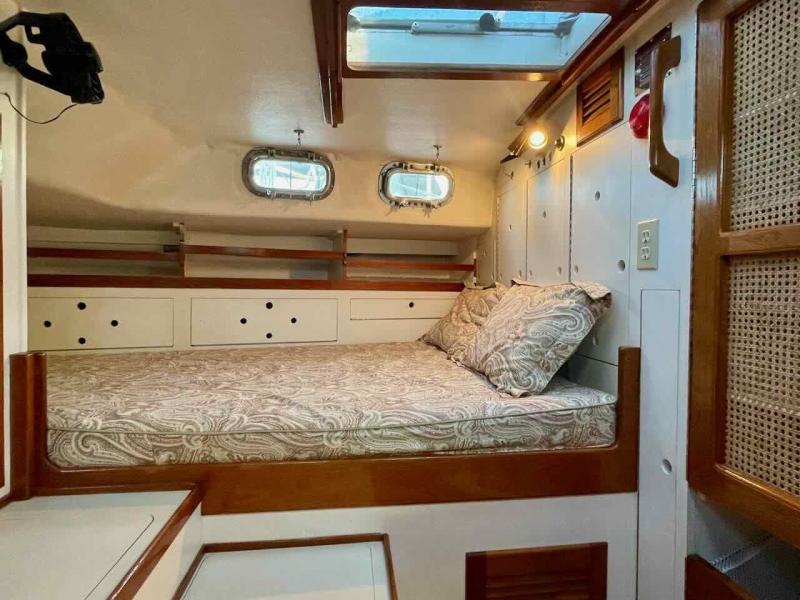

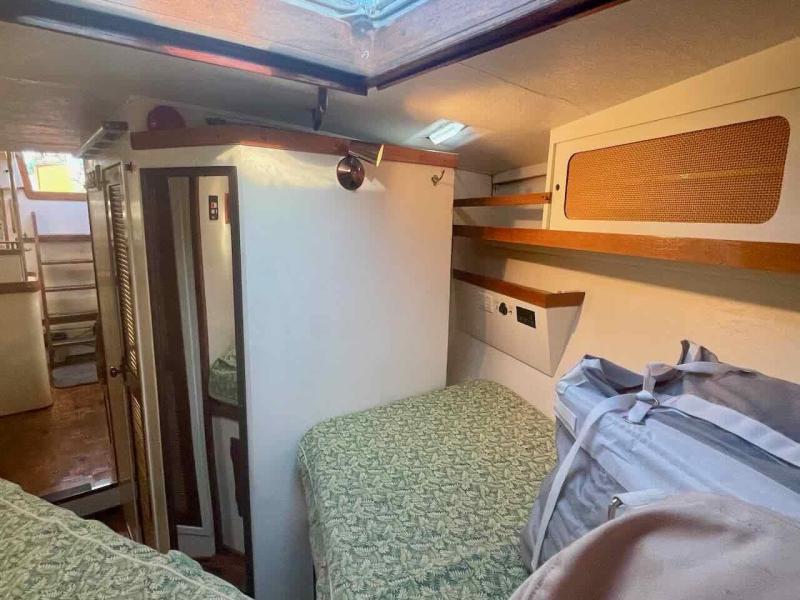

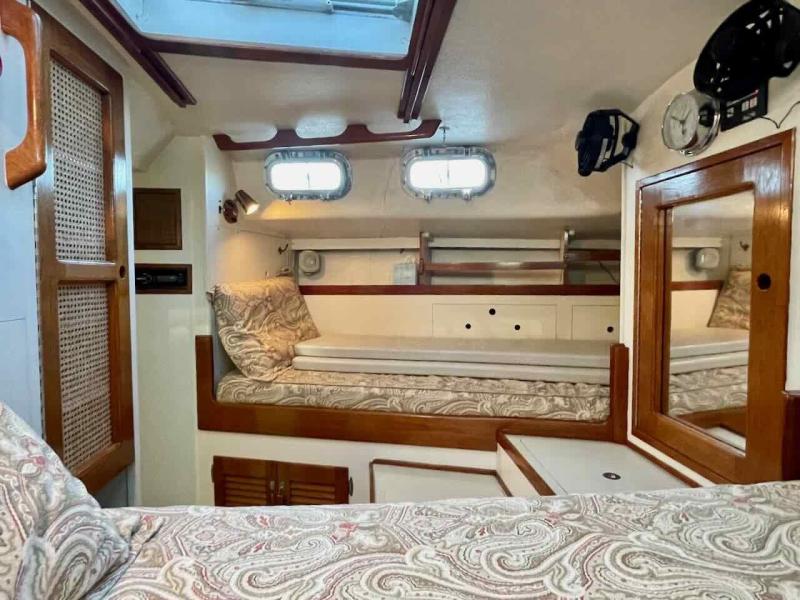

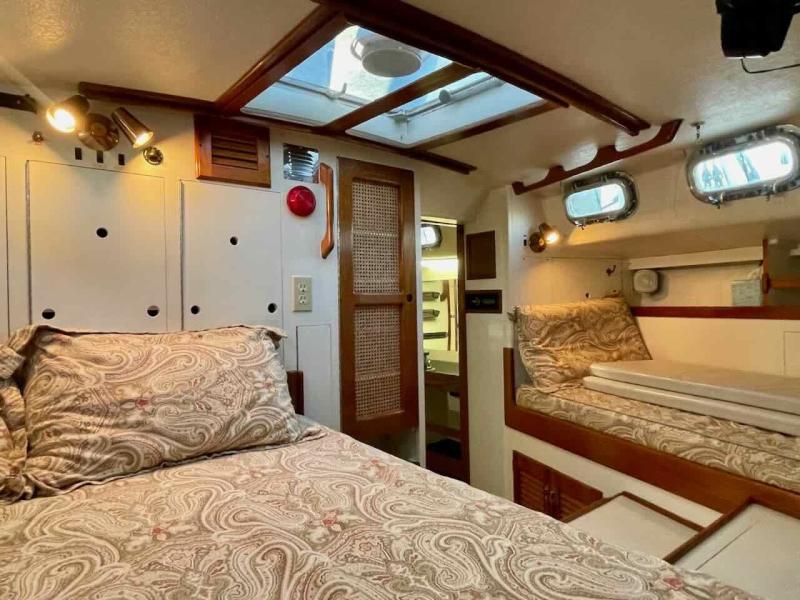

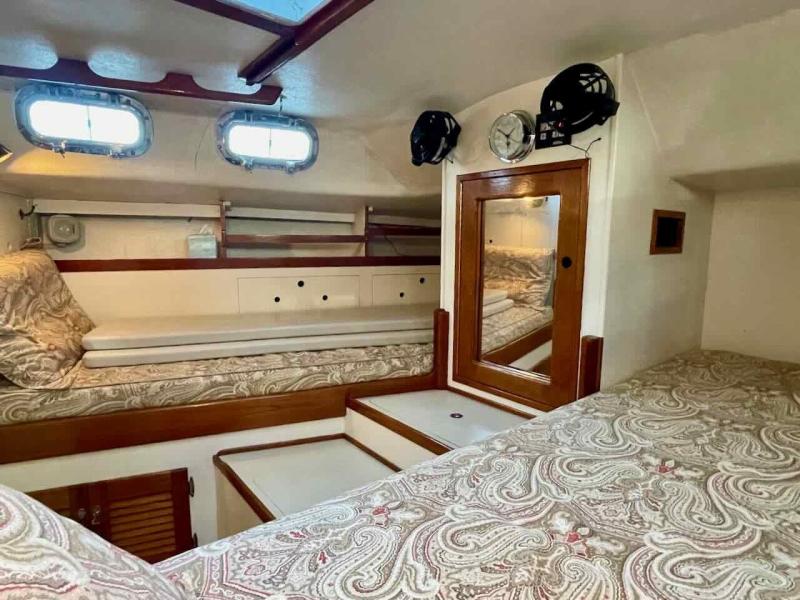

AFT CABIN

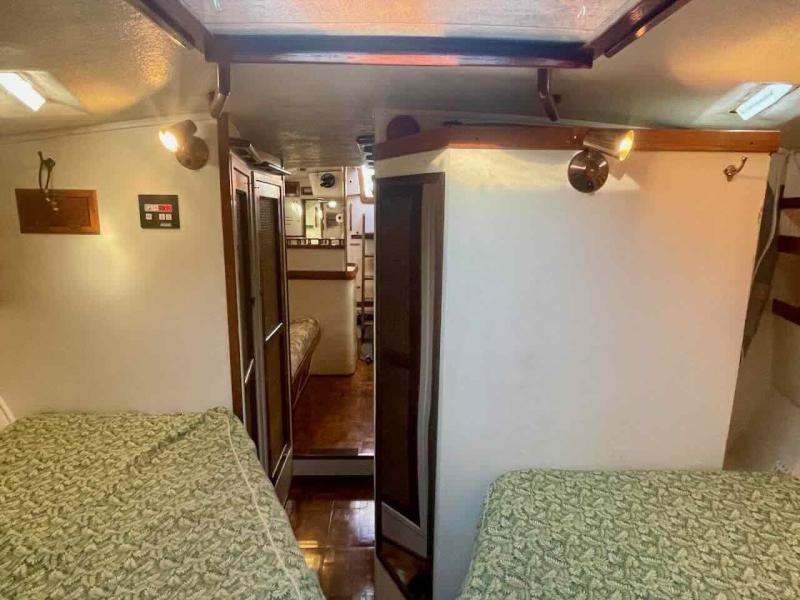

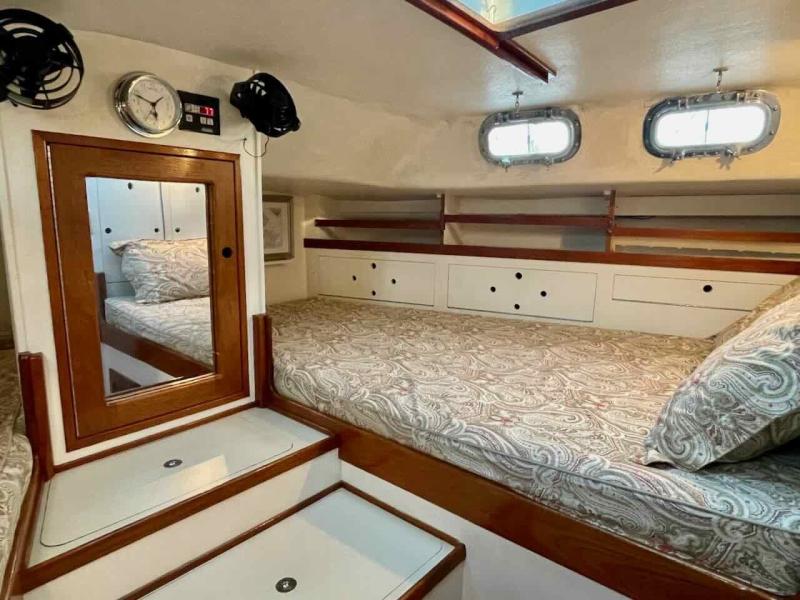

The full beam aft cabin is accessed via the work room and features:

- Private cabin with louvered teak door

- Double berth; port side

- Single berth; starboard side

- Two level counter, with locker above and top loading utility lockers below

- Lockers and shelving port and starboard sides running the length of the berths

- Lockers under the berths

- 6 Lockers in forward bulkhead

- Laundry hamper in forward bulkhead

- 2 Towel racks; door mounted

- 2 towel hooks

- Sony marine stereo system; model BSX-MS80

- 2 West marine stereo speakers

- Weems & Plath tide clock

- 120 vac outlet

- 3 Lamps, bulkhead mounted; 12 vdc

- Red night light; 12 vdc

- A/C register

- Marine Air Systems reverse cycle A/C control panel

- 2 Hella turbo fans; 12 vdc

- Opening overhead hatch with screen

- 4 Opening portlights

- 2 Overhead hand holds

- Bulkhead mounted hand hold

- 2 Mirrors

- Headroom 70 inches

- Berths 83 inches

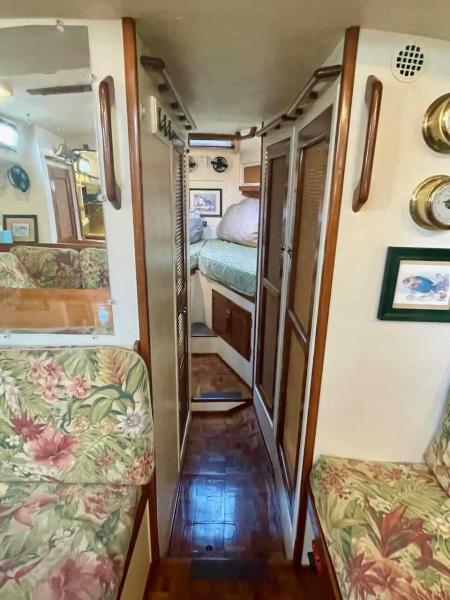

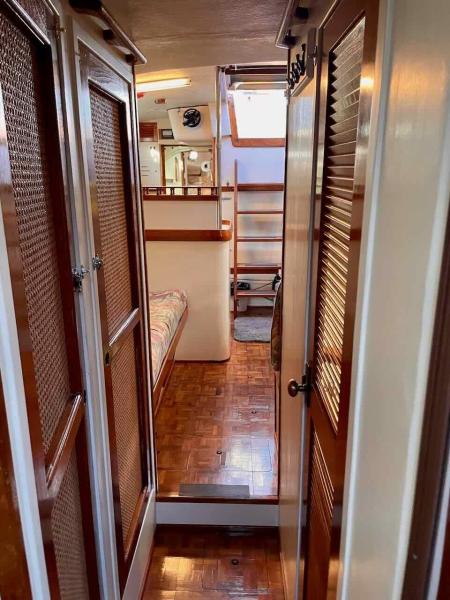

FORWARD COMPANIONWAY

The forward companionway extends from the seating area and features:

- Access to the forward cabin

- Access to the head

- 2 full length lockers

- 4 hand holds

- Headroom 75 inches

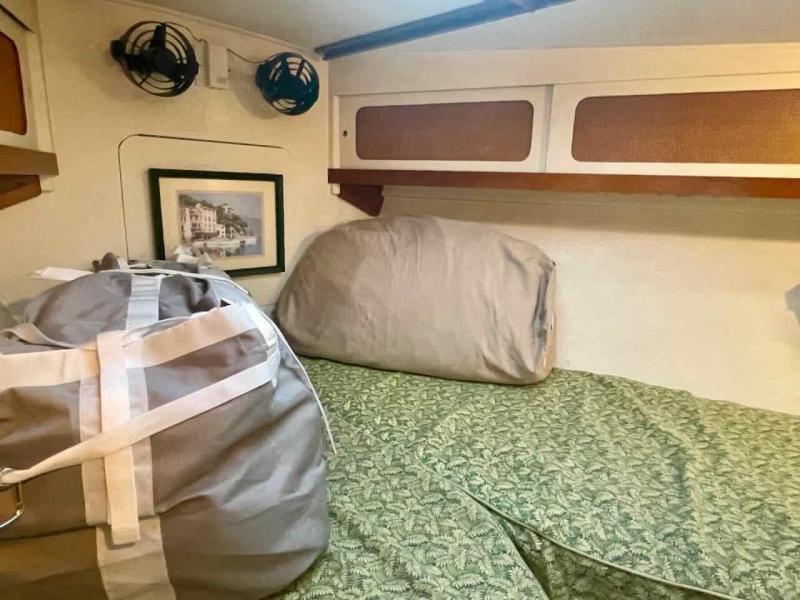

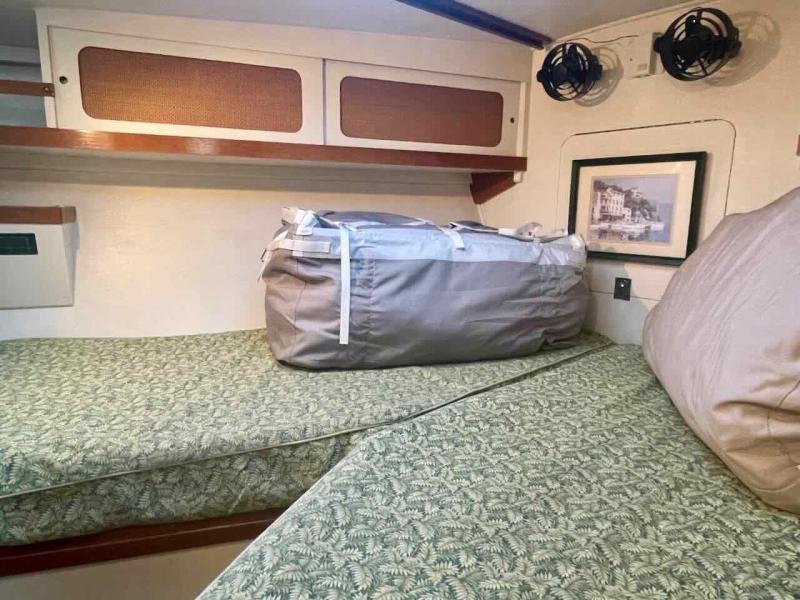

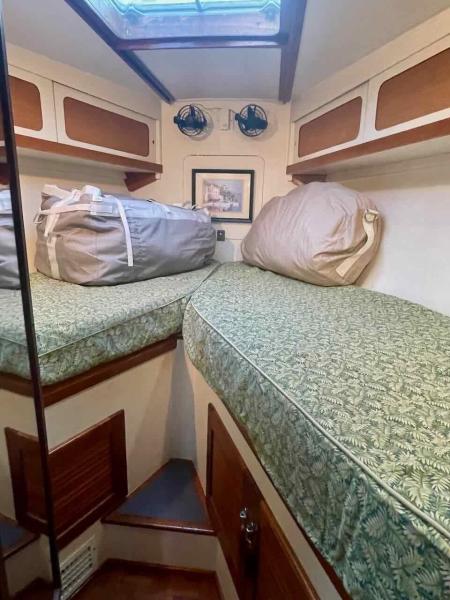

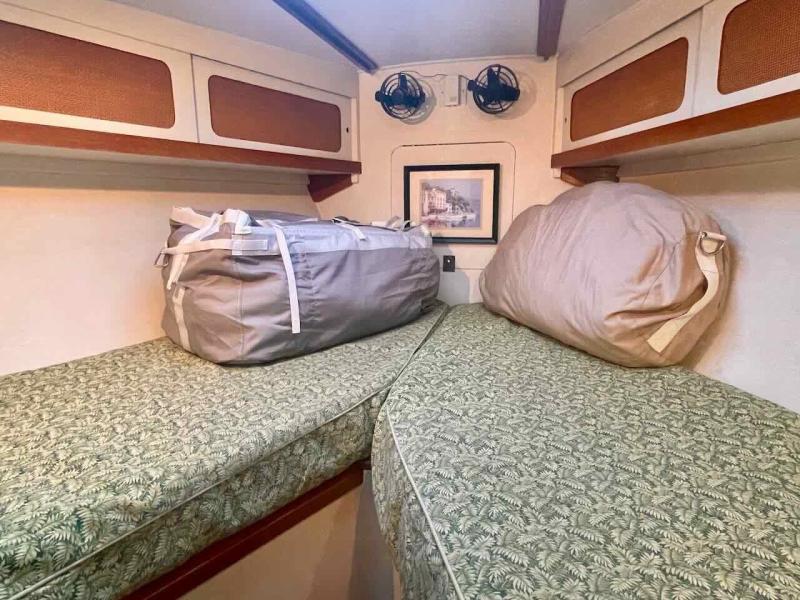

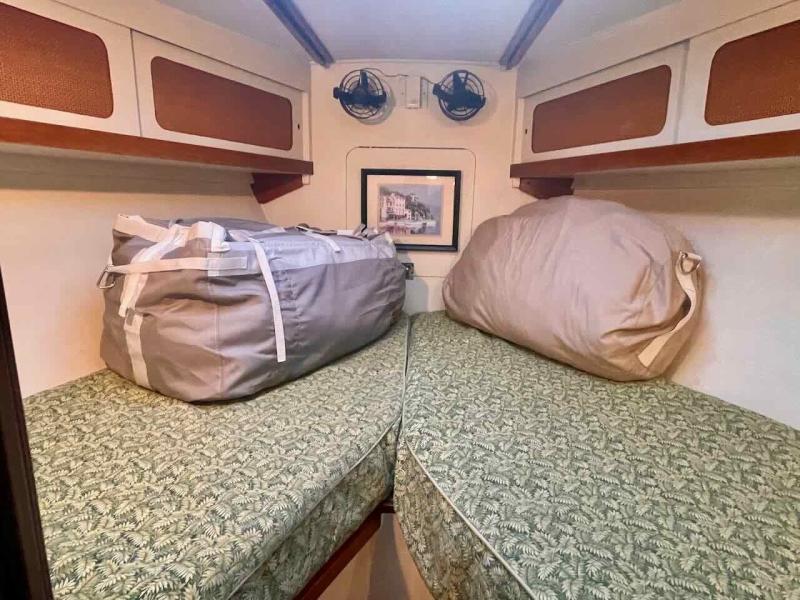

FORWARD CABIN

The forward cabin is accessed via a companionway from the main cabin and includes:

- V-berth

- Lockers and shelving port and starboard sides running the length of the berths

- Under berth lockers

- Chain well access, forward bulkhead

- 2 Reading lamps; 12 vdc

- Red night light; 12 vac

- 2 Overhead deck prisms

- 120 vac outlet

- A/C Register

- Marine Air Systems reverse cycle A/C control panel

- 2 Hella turbo fans; 12 vdc

- Opening overhead hatch with screen

- Micronta alarm clock

- Full length mirror

- Headroom 70 inches

- Port V-Berth 69 inches

- Starboard V-Verth 82 inches

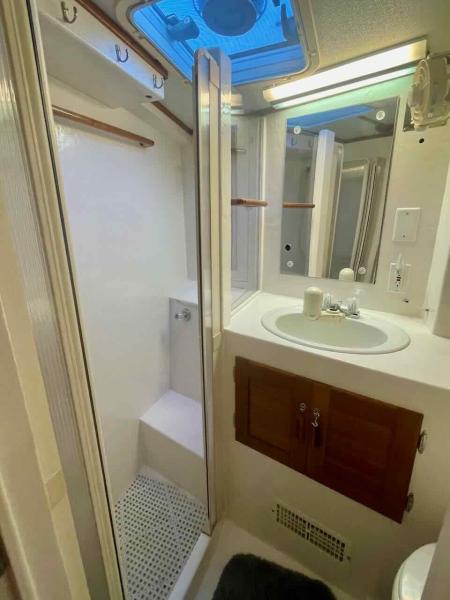

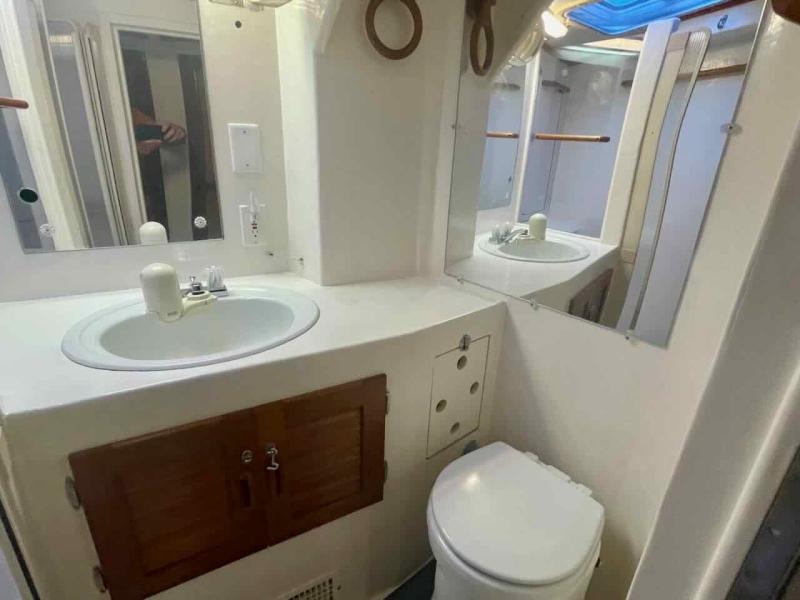

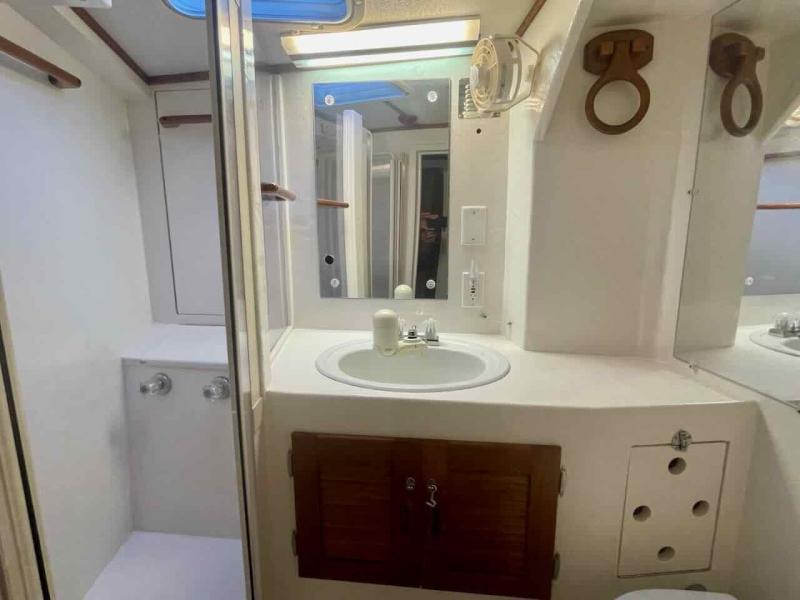

HEAD

The head is accessed from the forward companionway on the port side and includes:

- Private head with teak louvered door

- AirHead composting toilet

- Separate shower; including:

  * Shower wand, filtered hot & cold running water

  * Shower wand mount

  * Shower door

  * Locker

- Countertop

- Sink w/hot and cold running water

- 2 Under counter lockers

- Mirror over sink

- Mirror over head

- 5 Towel racks

- Towel ring

- 4 Towel hooks

- 2 Hand holds

- 120 vac outlet

- Over mirror light; 12 vdc

- Overhead hatch with screen

- Hella turbo fan

- Headroom 74 inches

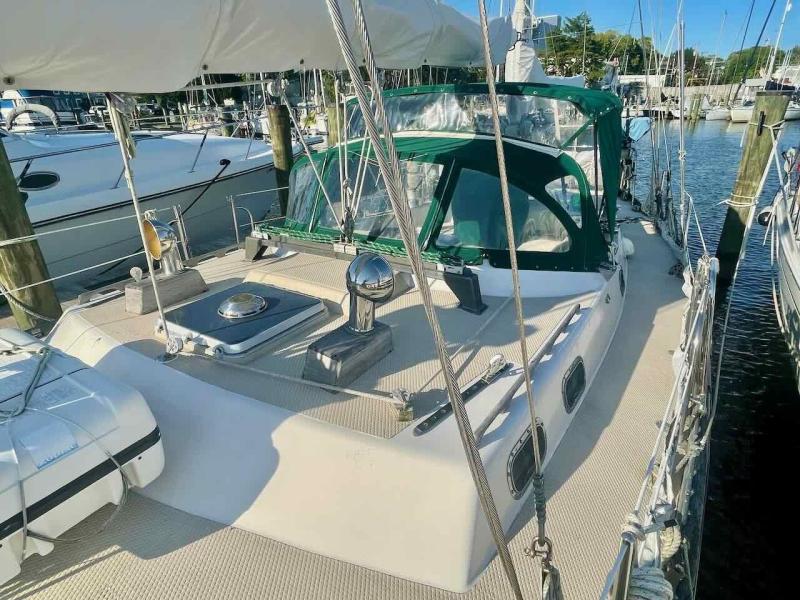

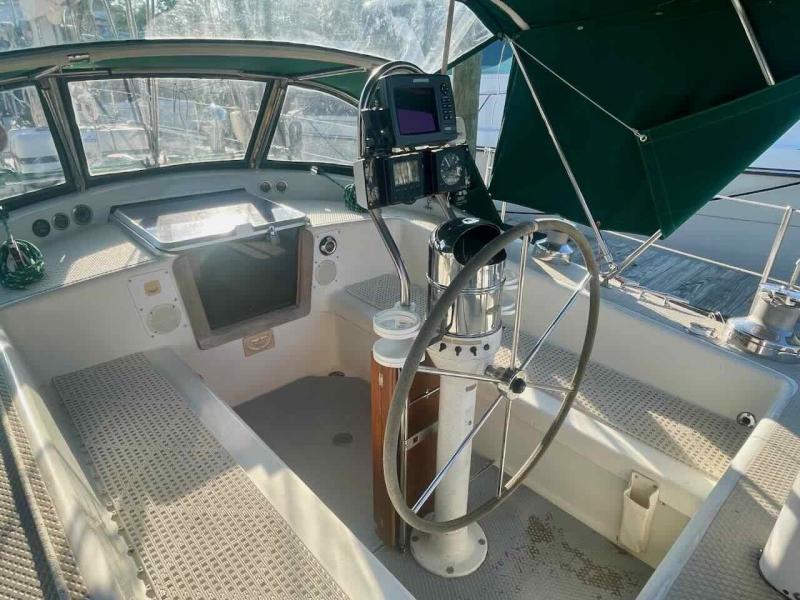

COCKPIT

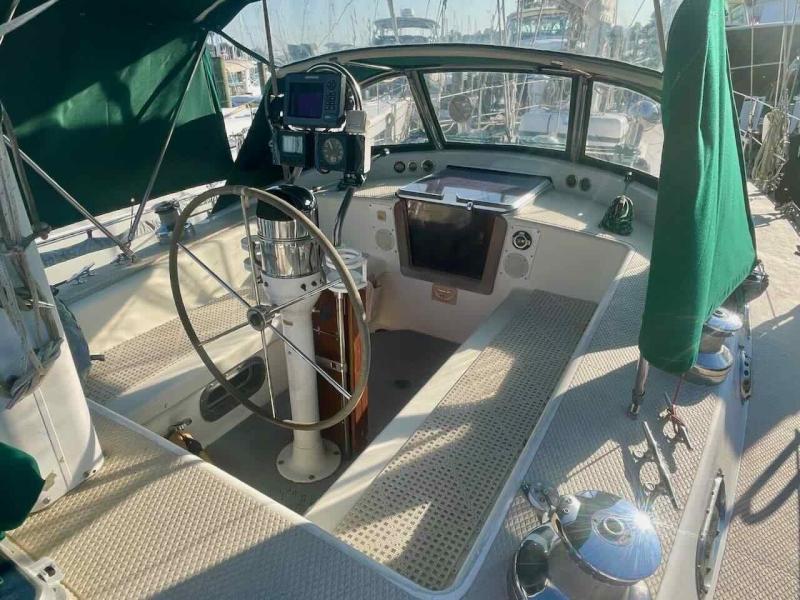

The center cockpit is midships and features:

- Treadmaster deck

- Seating for 7:

  * Port and starboard bench seating for 6 passengers

  * Aft seating for helmsman

- Cockpit cushions

- Destroyer wheel helm station with instrument cluster

- Center mounted teak cockpit table

- Sony stereo remote control panel

- 2 West Marine stereo speakers

- Cockpit courtesy light

- 2 Marinco 30 amp shore power receptacles

- Smart plug pone/tv receptacle

- Companionway to salon; center forward

- 2 Winch handle holders

- Portlight to Nav alcove

- 2 Deck scuppers

- 2 Bench seat scuppers

- Headroom 70 inches

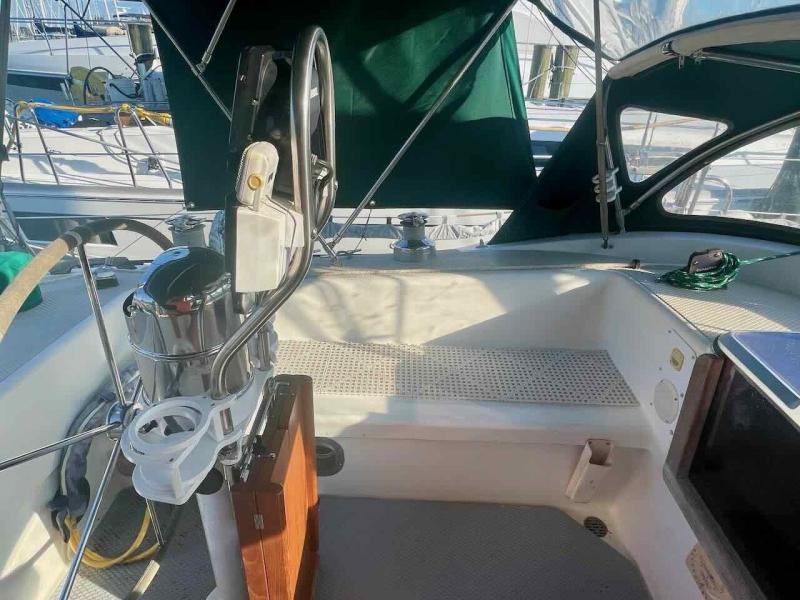

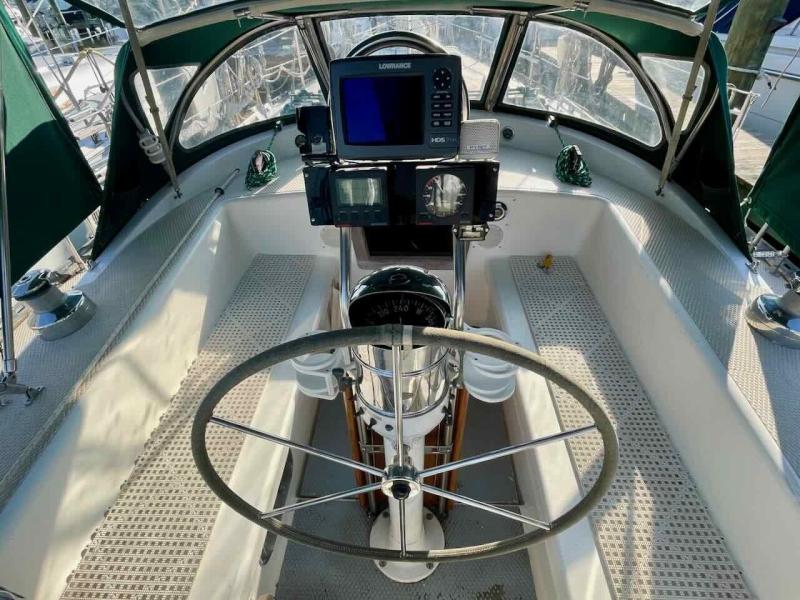

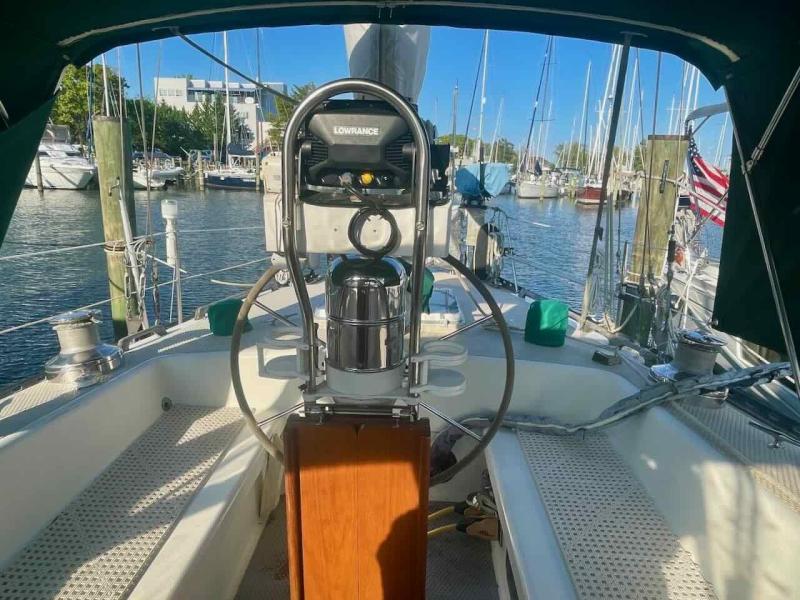

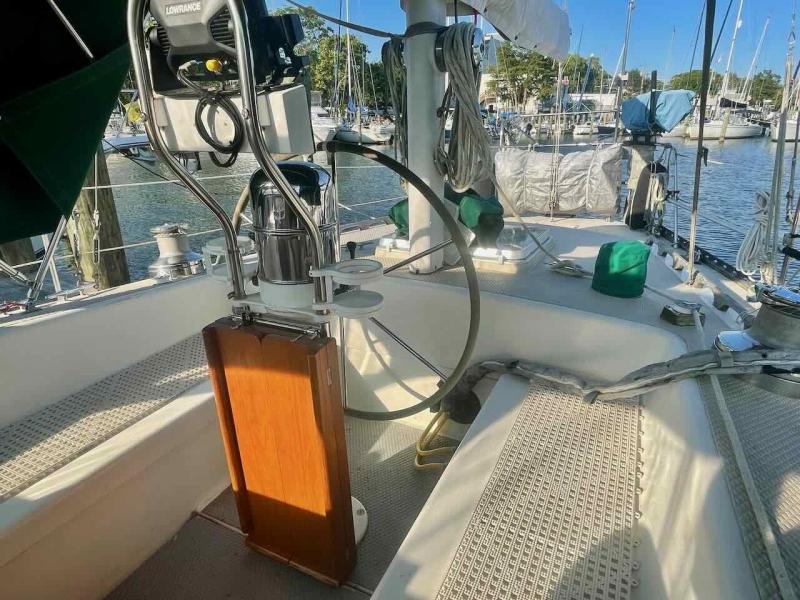

HELM

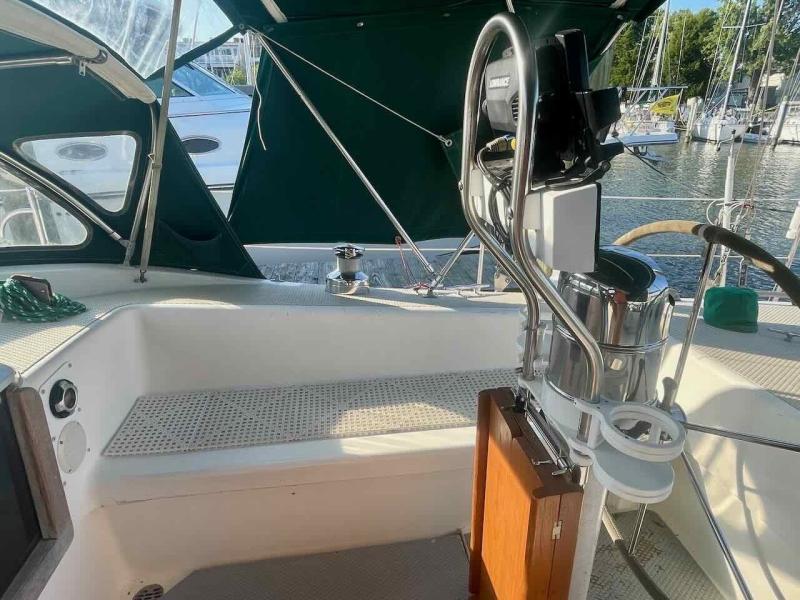

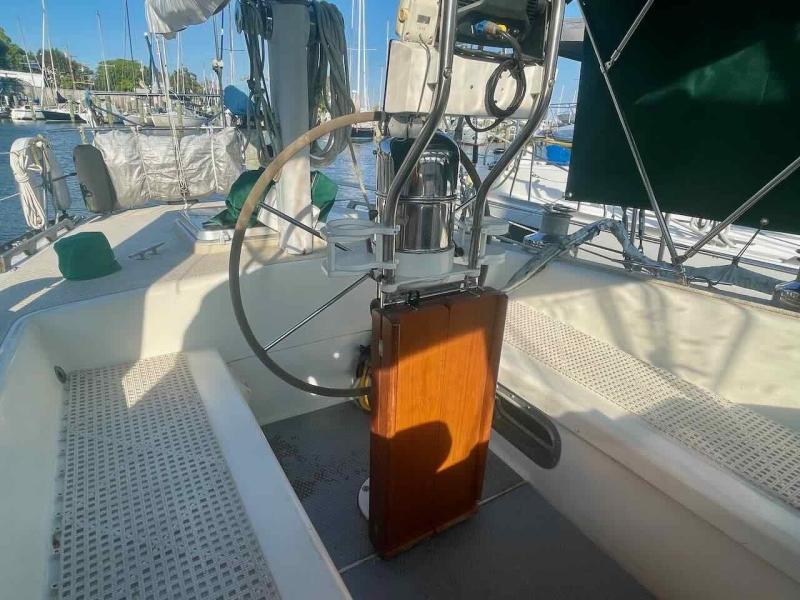

The helm station is found in the cockpit, aft and includes:

- Sued wrapped stainless steel destroyer wheel

- Magnetic compass

- Lowrance chartplotter; model HDS7m

- Autohelm wind instrument; inoperable

- Autohelm Depth/Speed repeater instrument

- Poly-plannar VHS speaker

- Tiny-Tac Tachometer

- Mount for autopilot remote

- Engine throttle/gear shift

- Engine ignition switch

- Engine kill pull

- Wheel break

SAILS & CANVAS

- 110% Genoa

- Hank-on Staysail – removable inner forestay

- Main with 2 reefs, lazy jacks

- Mizzen. Running back stay.

- Mizzen Staysail

- Cruising (asymmetrical) Spinnaker w douser ring, in deployment bag

- Storm Jib

- Storm Tri-sail (need slides for mast track)

- Dodger

- Bimini w/canvas sun curtains

- Eisenglass connector

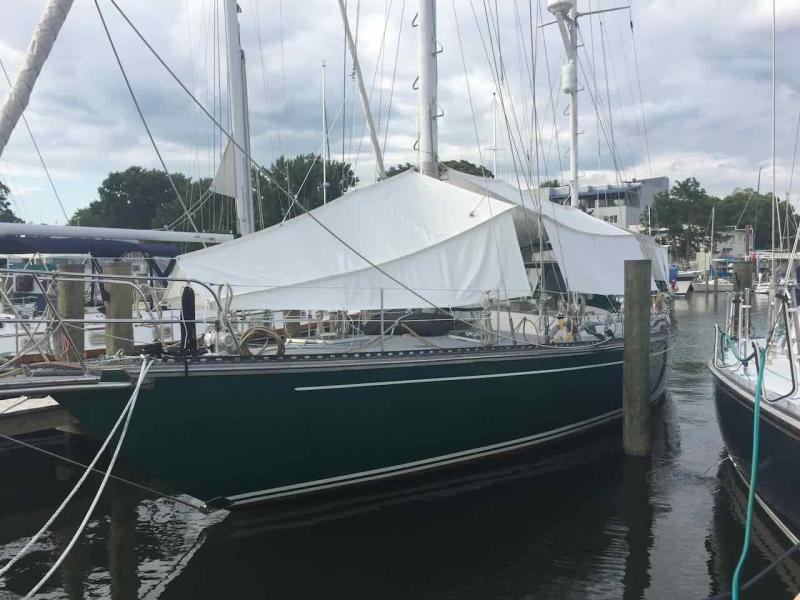

- 3-part, full coverage white harbor awning

- Main sail cover

- Mizzen sail cover

RIG

 - Masthead ketch rig

- Aluminum spars

- Double spreader main mast:

  * Stay sail stay

  * Running back stays

  * Lazy jacks

  * Self-tailing Barlow 25

  * 3 Self-tailing Barlow 25 winches

  * Integrated climbing foot holds

- Single spreader mizzen mast:

  * Running back stay

  * Lazy jacks

  * Self-tailing Barlow 19 winch

  * Barlow 16 winch

  * Integrated climbing foot holds

- Profurl Roller Furler

- 1X19 Stainless steel wire standing rigging

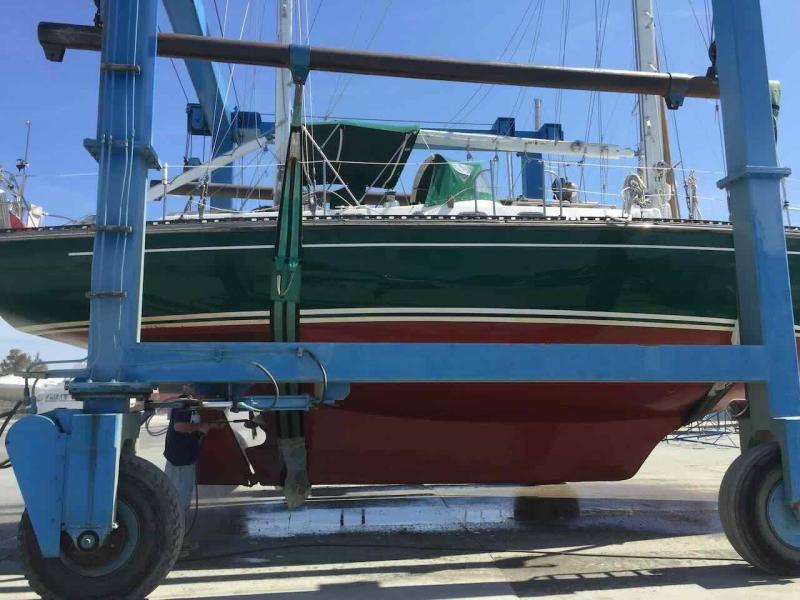

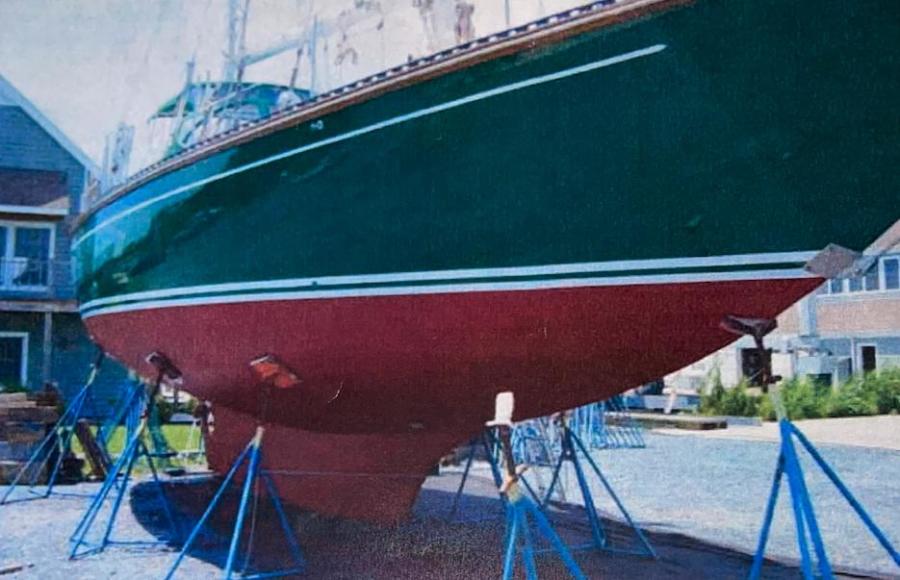

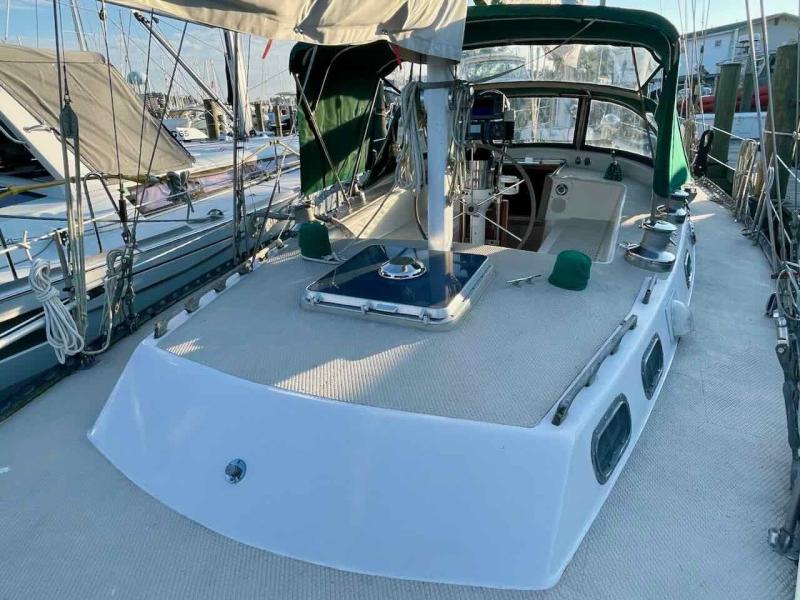

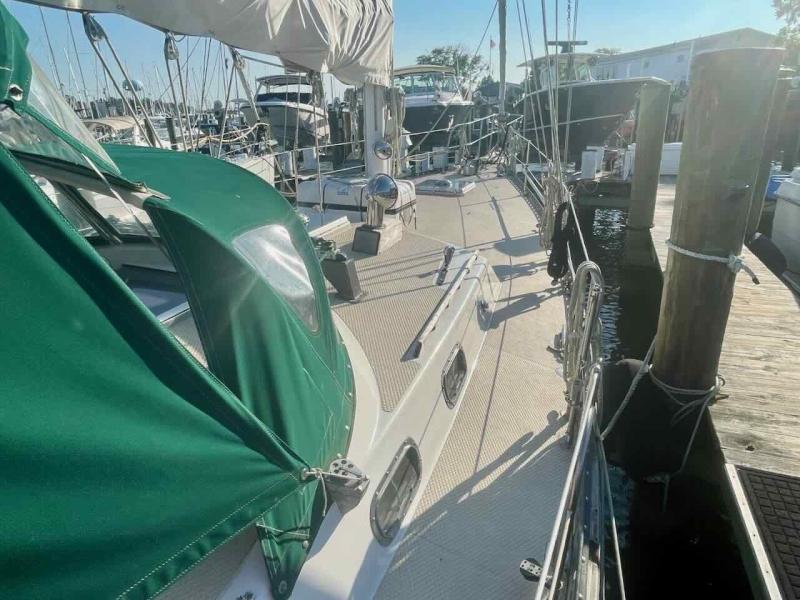

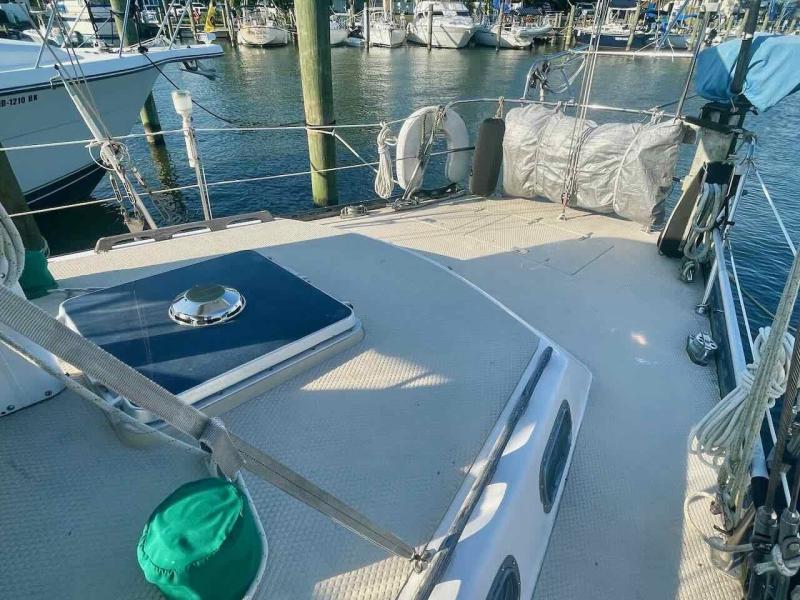

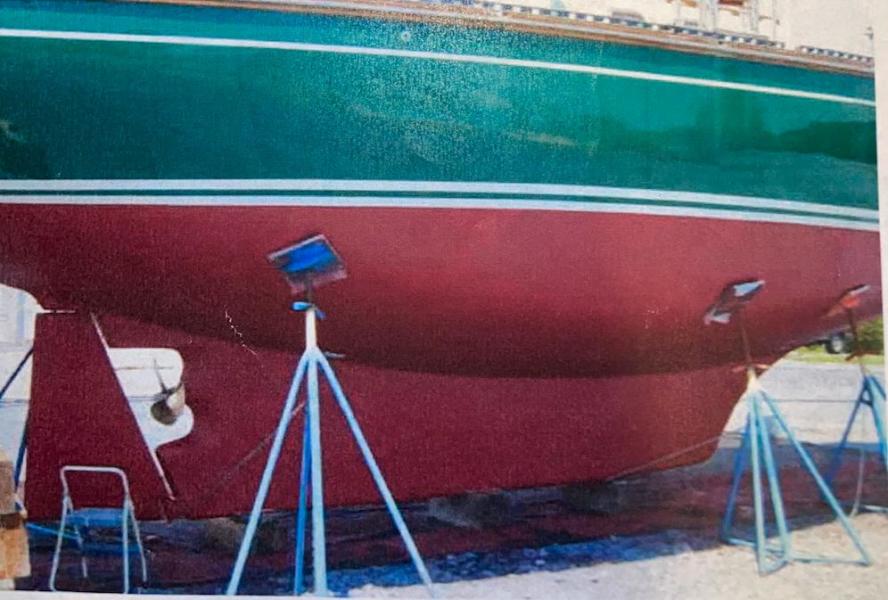

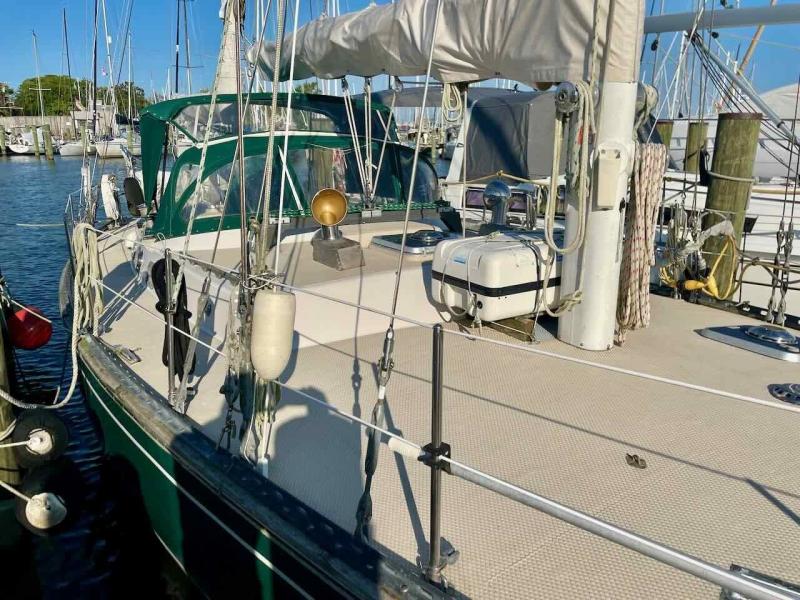

DECK + HULL

- FRP construction

- Full length keel

- FRP spade rudder

- Bonding system; #8 wire

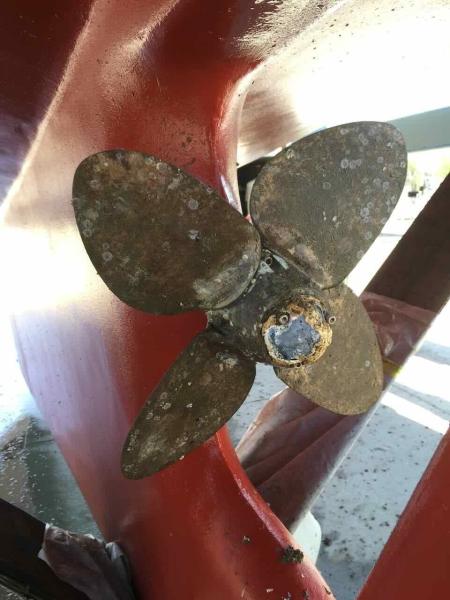

- Variprop 4 blade propeller

- 1-3/8’ Stainless shaft

- Lewmar TreadMaster Non-Skid Deck Covering, painted w Interlux Interdeck

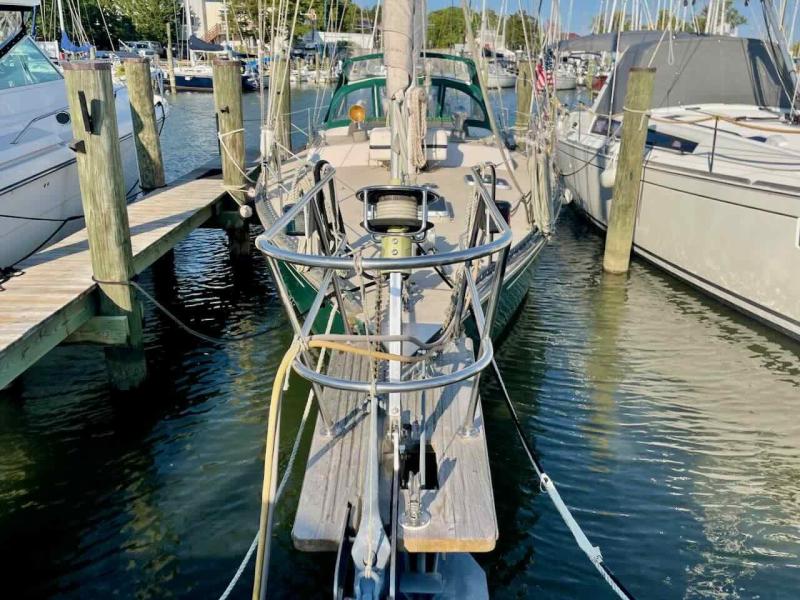

- Dual bow pulpit anchor mounts w/rollers

- LofransNilsson electric windless; 1500 w, 12 vdc

  * Foot controls

  * Wired for cockpit control, junction box on board, installation required

- 35-lb CQR on 350’ 3/8” chain

- 20-lb Danforth on 20’ 5/16” chain + 300’ of ¾” 3-strand rope.

- Spare CQR

- Spare Danforth

- Chain locker (forward cabin access)

- Transom locker

- Propane locker; 2 20 lb propane tanks, space for a 3rd

- Engine-powered deck washdown pump; doubles as emergency bilge pump

- Propane locker

- Transom locker

- 2 Barlow 32 2-Speed, self-tailing winches

- 2 Barlow 27 2-Speed, self-tailing winches

- Barlow 25 winch

- Barlow 23 self-tailing winch

- Winch handles

- 2 Schaefer stoppers are forward cabin top mounted.

- Stay sail lead tracks; port starboard cabin top

- Foresail sheet turning blocks

- Spinnaker sheet turning blocks

- 8 Snatch blocks

- Winch handles

- 4 Opening Goiot hatches, with screens

- 2 Dorade vents

- 2 Deck prisms

- 10 Opening portlights

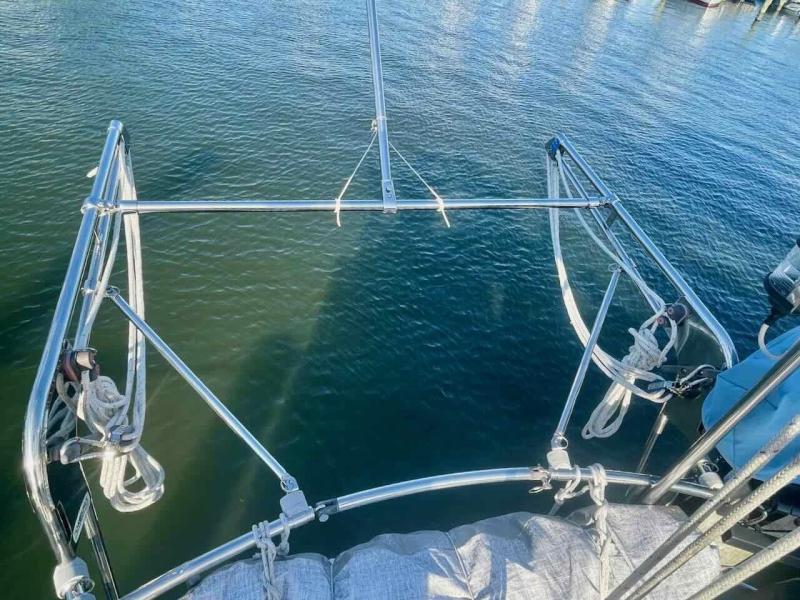

- Forespar tender davit

- Stainless steel stern and bow pulpit rails, connected by double life lines with port & starboard gates forward of cockpit and at the stern

- Swim ladder

- 6 Deck cleats; 2 at bow, 2 midships, 2 at stern 2

- 6 Running rigging cleats, cockpit

- 4 Foredeck pad eyes

- Navigation and anchor lights

- Hand held depth finder

- Hand held speedometer

- Fuel & water fills

- Washdown equipment

- Dock lines

- Shore power lines

- Fenders

- Boat hooks

- Miscellaneous cleaning supplies

ELECTRICAL

- 12 VDC electrical system panel

- 120 VAC electrical system panel

- Generator control panel

- Westerbeke Generator; 60 HZ, 4.4 KW, 120 V model 4.4 BCD; Hours: 411

- 75 amp alternator

- Heart Interface inverter/charger; model 81-0205-12(208)

- Heart Interface inverter/charger control panel; model LINK 2000-R

- West Marine Battery Combiner II; model 134108

- Batteries

  * House Bank; 4 GEL 6 vdc; 585 CCA; 180 AH @ 20Hr; P/N 8GGC2M

  * Engine Starting Battery; GEL 12 VDC; 575 MCA; 410 CCA; 74 AH @ 20 Hr

  * Generator Starting Battery; GEL 12 VDC; 575 MCA; 410 CCA; 74 AH @ 20 Hr

- 4 Battery switches

- Windless breaker

- RedPort WiFi Extender; model wSa-EXT

- 2 30 Amp shore power receptacle

- 30 Amp shore power cables

- Cable TV receptacle

- Electrical spare parts kit

MECHANICAL

- Perkins 54 hp 4 cylinder auxiliary diesel engine, fresh water cooled; model 4-154

  * Year 1997

  * Rebuilt; 2013

  * Post rebuild hours: 39.25

* Transmission; Borg-Warner Velvet Drive; Model 1017-010

- Racor fuel filter/water separator, model 120 FG

- Racor fuel filter/water separator, model 200 FG

- 4 Raw water strainers

- Raytheon mechanical auto-pilot

- 2 Marine Air Systems 7,000 BTU reverse cycle air conditioning units, model CMP7KV

- Dirt Devil vacuum system

- 2 Sea Frost refrigeration compressors

- 2 Sea Frost refrigeration units

- Par-Max 3.0 house water system pump; 2.9 GPM; model 31395-0092

- ITT Jabsco Accumulator tank

- Water system filtration unit

- Hot water heater; 12 gal; 120 vac & auxiliary engine

- Flojet bilge pump; 5 GPM; model 4125-114

- Rule Super Switch automatic float switch

- Manual bilge pump

- Engine compartment blower unit

- Mechanical spare part kit

SAFETY

- 4 Near Shore Type II PFD; adult

- 2 Sterns Type III PFD vests: Adult

- 3 BodyGlove Type III PDF vests; Youth

- Sterns Type III PDF Vest; Child

- 2 SOSPenders inflatable/harness; Type IV convertible PFD; adult

- Jack lines

- 5 Harnesses

- Horseshoe throwable PFD

- Life Sling man overboard rescue system

- 3 Kidde dry chemical fire extinguisher, Type B:C Size 1

 - Kiddie ABC fire extinguisher

- American LaFrance fire extinguisher; Clas 1-A:10-B:C

- Dupont Fire Eater Automatic Halon engine compartment  fire extinguishing system; model 1301

- Emergency Kit:

  * 2 Forespar strobe lights; model RL-2

  * Orion dye marker

  * Whistle

  * Emergency VHF Antenna

  * ACR Distress SOS night visual distress signal

  * ACR ThermaBlanket

  * Olin Flair Kit; 26mm signal flair launcher; flairs expired

  * 40 ft Sea Rescue Streamer

- Zodiac 6 person life raft; certification required

- Zodiac Cadet Fastroller tender

  * 2004

  * 10 feet 2 inches

  * ModelC310FR Anti-V

- LEHR outboard engine; propane; 5 hp; model LP5.0

- Tender running lights

- Oars

- Foot air pump

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
